Select the year of your Polaris Ranger 500:

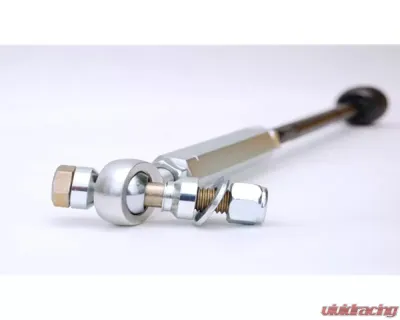

- Heavy-duty replacement tie rod/rack end
- Heavy-duty heim joint
- Hex adjustment bar
- Heavy-duty hardware
- Detailed instructions with photos
- Comes with everything shown in the picture
- For Instructions CLICK HERE
- Polaris Ranger 500 2009-2010 New body style with dual A-Arms and shocks only.
- Polaris Ranger 700 2009 Standard cab with dual A-Arms and shocks only.
- Polaris Ranger 700 HD 2009
- Polaris Ranger 800 2010-2012
- Polaris Ranger 800 Crew 2011-2012
- Polaris Ranger 800 6x6 2011-2012
- Polaris Ranger 900 DSL 2012
- Polaris Ranger 900 DSL Crew 2012
- One kit will replace the left or right side tie rod/rack end. If you want to replace both the left and right sides, a quantity of two (2) kits will need to be ordered.
- High Lifter's Pro Series Alignment Kit (PSAK-1) is REQUIRED if you plan to install ANY brand of Ranger lift kit and have updgraded or are upgrading to the Pro Series Ranger Tie Rod/Rack End Kit. This kit reduces tie rod angles and also upgrades from the OEM 10mm bolt to a 1/2" Gr. 8 bolt to match the heavy duty heim joint in our Tie Rod/Rack End Kit. The alignment kit comes with 2 alignment cones and all hardwared required to upgrade both sides of the Ranger. If you are running our High Lifter Forward A-Arm kit that includes the Alignment Cones for 1/2" bolts, you can install the Pro Series Tie Rod/Rack End Upgrade Kit without purchasing PSAK-1.
- A MINIMUM of a 1" wheel spacer is required on the front if you are running 12" diameter factory or aftermarket wheels for the wheel to clear the tie rod with the alignment cones installed. If you are running wide tires, a 1.5" or wider spacer may be required depending on the width of the tire for tire to shock clearance at full lock steering.
- Does not fit 500 Ranger with single lower A-Arms and struts.
- Does not fit 2009 700 Ranger Crew with single lower A-Arms and struts
Other Part Numbers:
High Lifter #PSTRKHD-RNG-1
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
2009-2010 Polaris Ranger 500 |
Ranger 500 | 2009-2010 |
2009 Polaris Ranger 700 |
Ranger 700 | 2009 |
2010-2012 Polaris Ranger 800 |
Ranger 800 | 2010-2012 |
High Lifter is an aftermarket company that was established in 1996. The company specializes in creating accessories and upgrade parts designed for All Terrain Vehicles (ATV), UTVs, and RUVs. It started as a backyard hobby which later on turned into a multi-million dollar company.
Outstanding FacilitiesThe company is based in Shreveport, Louisiana in a 52,000 square foot facility. It houses its own retail showroom, an in-house manufacturing facility, and not to mention multiple warehouses used for housing its inventory. Today, they are the leading company in its market segment and is a brand known worldwide.
The company began by developing the very first ATV Lift kit. Seeing the lack of aftermarket support on these vehicles, they grab on the opportunity and developed a kit that people could directly bolt-on. After numerous design revisions and product testing, they were able to create a final design. They initially sold their products in small numbers but as people started appreciating it, orders started pouring in and the rest is history.
High Lifter was also responsible for creating one of the most recognizable events for ATVs and UTVs- the High Lifter ATV Mud Nationals. Today, it has become an annual event with over 14,000 attendees coming from different parts of the globe. High Lifter has helped revolutionize the industry and forever changed the industry as we know it.
Purchase High Lifter Product at Vivid RacingHigh Lifter offers a wide range of products designed for ATV and UTV such as lift kits, bumpers, and other offroading accessories that helps improve the performance of your vehicle. They are a brand trusted by everyone for years and so can you. Visit Vivid Racing and see their list of products.
- The Lifetime Warranty covers products sold to the original purchaser only and is not transferable. The term of the warranty is for the lifetime of the vehicle in question.
- Normal wear and tear items and finishes, such as, but not limited to: Heim joints, tie rod ends,ball joints, bearings, seals, bushings, bushing sleeves, zinc plating, powder coating, or chipping and discoloration of any finish is not covered.
- High Lifter will ship the replacement product after the returned product has been inspected by High Lifter staff.
- The warranty shall not include claims for damages, installation time or labor charges, economic losses, inconvenience, transportation, towing, down time, direct or indirect or consequential damages or delay resulting from any defect.
- The warranty does not apply to products that have been improperly applied or improperly installed.
- The warranty does not apply to products installed on vehicles used for ATV/UTV Racing.
