Gates C5CXH Xtreme Heat Hose - SAE 100R5 - 70095

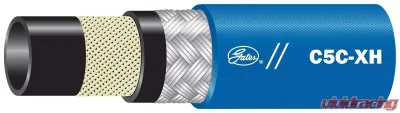

C5C-XH Xtreme Heat Hose

The C5C-XH Xtreme Heat Hose is designed for those demanding applications that require high-temperature lube oil lines. Perfect for on-highway trucks, buses, off-road construction, and agricultural vehicles, this hose excels in handling high-temperature petroleum-based and phosphate ester fluids, turbocharger oil supply, and hot lube oil lines.

Key Features

  • Compatible with C5 and C5X Field Attachable Couplings (G34 Series) and crimp options for MegaCrimp (G25 Series) and GlobalSpiral (G20 Series), depending on size.
  • Constructed with a blue, oil, and mildew-resistant polyester/textile braid cover.
  • Complies with SAE 100R5 standards for hydraulic applications.
  • Meets DOT FMVSS 106 74 Type AII and SAE J1402 Type AII specifications for sizes -4 to -12.
  • Temperature Range: -40°F to +302°F (-40°C to +150°C).

Federal law mandates registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings. For compliance details, refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.

Specifications

  • Product Type: C5CXH XTreme Heat Hose - SAE 100R5
  • Industrial Description: 4C5CXHXREEL
  • Type: Fleet Application & Maintenance Hose
  • Hose Pressure Description: High Pressure
  • Maximum Working Pressure: 3000 psi
  • Minimum Burst Pressure: 12000 psi
  • Temperature Range: -40°F to +302°F (-40°C to +150°C)
  • Length: 440 ft
  • Dash Size: 4
  • Hose Inside Diameter: 0.1875 in
  • Hose Outside Diameter: 0.52 in
  • Minimum Bend Radius: 3.4 in
  • Tube Description: Black, Oil & Heat Resistant, Synthetic Polymer Tube
  • Tube Material: CPE - Type J
  • Reinforcement: Braided High Tensile Wire & Textile
  • Cover Material: Polyester & Textile Braid
  • Cover Type: Oil & Mildew Resistant
  • Cover Color: Blue
  • SAE Specification: 100R5
  • EN Specification: N/A
  • ISO Specification: N/A

Other Part Numbers:
Gates #GATES-70095

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Gates Banner

Who is Gates?

Gates is a manufacturing company that specializes in creating application-specific fluid power and power transmission solutions. Their aim is to push the boundaries and engineer products that would meet their customer’s expectations. Today, they are one of the leading brands in their industry segment and have been trusted by millions of users worldwide.

Search for Perfection

The company has continuously invested itself in its research and development to create products that surpass industry standards. By using real-world experiences, they are able to create innovative products that are superior compared to their competitors.

World-Renowned Brand

Gates has expanded itself by offering more products from its catalogs. They are best known for their engine belts that are designed to fit most vehicles available in the market. Due to their product’s high quality, it has become the brand of choice of professional mechanics and tuners around the globe. They have facilities located at over 120 locations in 30 different countries enabling them to accommodate the increasing demands of their clients.

Purchase Gates Products at Vivid Racing

If you want quality parts for your vehicle, then Gates is the right brand for you. With over 100 years in the business, they are able to establish a reputation as a leading manufacturer with a strong sense of personal responsibility and are fully dedicated to providing its customers with the best product. To know more about Gates, visit Vivid Racing and check out their list of products that fit your specific requirement.






Limited Warranty

Goods are warranted to be free from defects in material or workmanship for the life of the Goods (or the published recommended replacement interval specified by Gates). Gates will replace or repair, at its option, any Goods proved defective in material or workmanship during the warranty period. This is the sole remedy for breach of warranty. Color fade and color difference is not warranted. This warranty is void if the defect is caused by improper installation, use or maintenance of the Goods, or used for racing or competition. Goods are not warranted to comply with laws that may apply to uses of the Goods not stated in related materials, e.g., use in manned or unmanned aviation or life support applications. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. FAILURE TO REPLACE TIMING BELTS OR OTHER GATES PRODUCTS AS SPECIFIED MAY RESULT IN CATASTROPHIC ENGINE OR EQUIPMENT DAMAGE, FOR WHICH GATES DISCLAIMS ALL RESPONSIBILITY, TO THE EXTENT PERMITTED BY APPLICABLE LAW.

Some states do not allow the exclusion or limitation of incidental or consequential damages, and some states do not allow limitations on how long an implied warranty lasts, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
