This product is for Racing Competition only and is not legal for use in highway or street vehicles or other non-racing competition off-road vehicles.
Purchasing this product requires you to sign our Vehicle Compliance Waiver here.

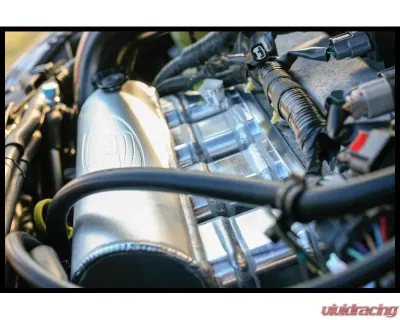

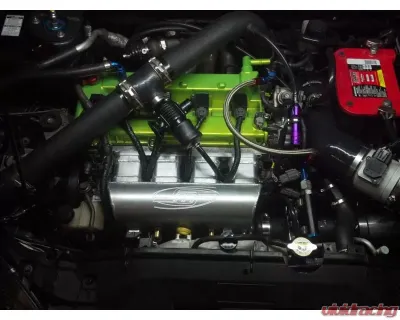

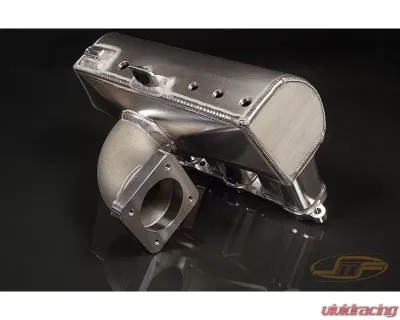

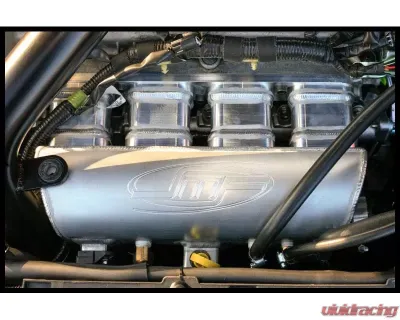

Extensive testing was done on various setups and improvements were made in every aspect. You can see for yourself in the collection of test result graphs in the pictures section. Even on a stock turbo car with no additional tuning and simple bolt ons the intake manifold produced an additional 8hp/11ft-lbs and drivability was improved greatly. Adding this manifold to a more serious setup yielded gains of 45hp with no additional tuning. With a proper tune and setup 60hp gains can be expected! Every effort was made to keep this manifold as close to a stock replacement as possible. Installation for the most part is bolt on but some modifications to your IC piping will be required. This manifold will NOT work with the stock top mount intercooler, you will need to have a front mount intercooler installed.
Features:

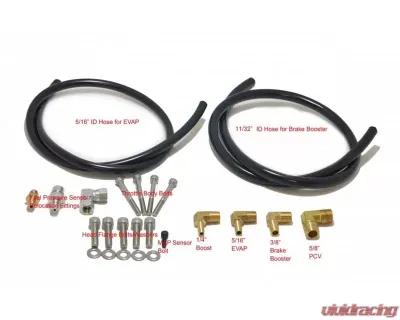

- Includes:
- All new stainless steel hardware

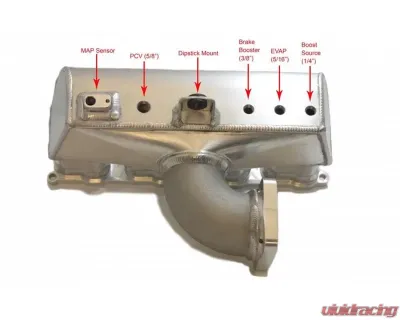

- Brass vacuum fittings
- Fittings to relocate your fuel pressure sensor
- Vacuum hose
- Available in a InchBRUSHED/UNPOLISHED Inch finish or a mirror like InchPOLISHED Inch finish
- Made from 6061-T6 aircraft quality aluminum
- CAD designed

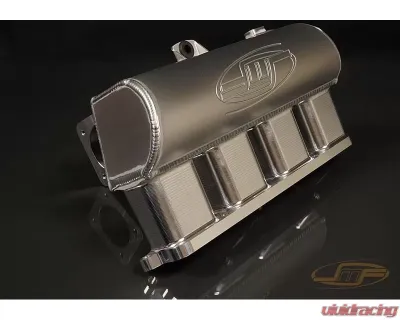

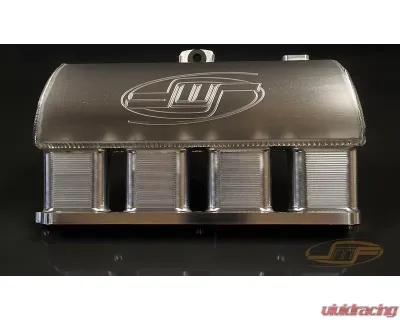

- Tapered one piece billet runner section

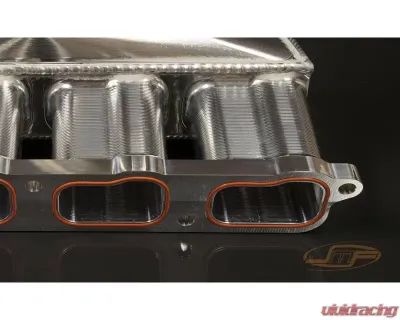

- O-ring'd head flange eliminates the need for a gasket
- Made in the USA
Install Tips:
- The throttle body can be installed rotated 180° from OEM for more clearance from the wire harness on the starter.
- Modifications to your IC piping may be required.
- It may be easier to install the dipstick tube in the rubber grommet first before inserting it into the engine block.
- The center bolt for the head flange can be a bit tricky to access, the best tool to use is a 1/4 Inch drive ratchet & swivel with an 6mm rounded hex key socket.
- Be sure to use blue loctite on the intake manifold head bolts and torque them to 13-16 ft/lbs.
- Be sure to use a teflon paste sealant on the fuel pressure sensor relocation fittings, teflon tape is not recommended.
