Select the year of your Polaris Ranger XP 1000:
Equipped with 3" to 5" Tire Size Increase or Stock Tires at 8,000' to 10,000' Elevation.
Install Instructions: CLICK HERE!

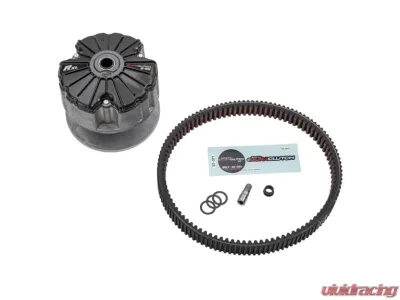

What's Included:
- DURACLUTCH RXL Primary Clutch
- Long-lasting DURABELT
- Primary screw bushing
- Secondary shims
- Loctite
- Primary screw tool
- Decals
- Installation Instructions
Features:
SMOOTH!
- Six Internal Rollers: Provide smooth engagement with effective damping, eliminating the harsh engagement of flyweight engaged CVT's.
- Excellent Belt Pinch: No belt slip at start up or at higher speeds = Smoothability.
- Runs Lower RPM's: Efficient roller transition though whole torque curve resulting in better fuel mileage up to 32% and a quieter ride!
- Fine tuned roller ramp profile: Ultra effective upshift and backshift. Feel the responsiveness when you put the pedal to the metal.
- Superbly calibrated system: Gives more function in low gear and better acceleration through entire RPM range in high gear.
- Multiple calibration options: Dial in your ride based on your vehicle specs and riding environment.
- Sealed shift cavity: Keeps the dirt & dust way from the rollers, making it a long-life primary that will perform consistently.
- Less component wear: Equals less shop time & more ride time.
- Low belt temps: The whole clutch system stays cooler resulting in optimal performance and improved belt life.
Fitment:
- Polaris ALL RANGER XP 1000 NORTHSTAR 2022-2025 with a 3" to 5" tire size increase
- Polaris ALL RANGER XP 1000 NORTHSTAR 2022-2025 - with stock tires at 8,000' to 11,000' elevation.
Notes:
- Does NOT Fit: 2022-2025 RANGER 1000 SOHC(Non-XP) These models have a Polaris P190X clutch.
- Does NOT Fit: 2022-2025 RANGER XP1000 & XP1000 CREW (NON NORTHSTAR), and 2021 RANGER XP1000 (All Models). These models have the Polaris P90X Clutch with a 10:1 crankshaft taper. Order RXL kits 15-600 thru 15-604 or 15-611 thru 15-615 for these models.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
2022-2025 Polaris Ranger XP 1000 |
Ranger XP 1000 | 2022-2025 |
Duraclutch UTV clutching systems were developed by long-time Polaris engineer and executive Mitchell Johnson. Mr. Johnson has worked on off-road vehicles his entire life. Mitchell’s father, David Johnson, and uncles Edgar and Allen Hetteen started Polaris back in the 1950s. Having grown up at Polaris, he worked there all the way from the time when he was a young boy sweeping floors and filling bolt bins. It was Mitchell Johnson who developed the Polaris ATV “On Demand” four-wheel-drive system. As a matter of fact, several of Polaris’ major products were developed under Mitchell’s supervision and direction at Polaris, including the Sportsman ATV, Ranger Utility Vehicle, and Youth ATV product lines.
What Is a Duraclutch?A Duraclutch is a whole new clutch system that works similarly to the OEM system but differently at the same time. It is not merely a clutch kit, but a direct replacement for the stock clutch system equipped with a new primary, new secondary, and a new belt. It is manufactured by a dedicated team, two of whom have been with Polaris since the very beginning – so you can rest assured that you are buying from professionals who eat, sleep, and breathe Polaris and can vouch for their products. In fact, all Duraclutch systems are backed by a 5,000-mile warranty or a one-year warranty on the belt and clutches.
Why Buy a Duraclutch?With Duraclutch, there is no belt slippage when starting and pulling heavy loads. It is different from all other clutch kits out there because the engagement takes place in the internal clutch packs, which means the belt is always engaged. The Duraclutch clutch packs deliver a smooth transition from idle to moving without any jerking motions. It also provides equal or better acceleration and speed when compared to the factory clutch system.
The Duraclutch system distributes positive engine braking on all kits, which proves to be superior in all conditions for downhill control and seamless downhill braking transitions. Special back drive cam profiles are developed to optimize engine braking attributes.
Lastly, the Duraclutch will hold up the same or better than the stock clutch when it's put through the elements. Also, the cleaning procedure for a Duraclutch is the same as for a stock clutch system. When you get a Duraclutch, you can expect the belt to last more than 10,000 miles in some cases. It is recommended that you examine a belt at 5,000 miles in hard use and at 10,000 in normal use.
Find Duraclutch at Vivid RacingWith Duraclutch, you will experience ultra-smooth starts, positive engine braking, improved belt life, and greater pulling capability. If that sounds like something you would like, then look no further. Vivid Racing carries a wide selection of Duraclutch parts, including clutch kits for UTVs, ATVs, and snowmobiles, in addition to accessories like traction control systems. If you have any questions regarding Duraclutch systems or its benefits, please contact Vivid Racing’s expert sales team at (480) 966-3040.
