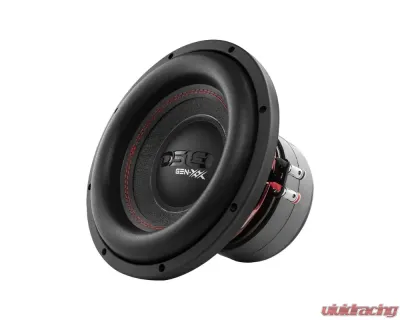

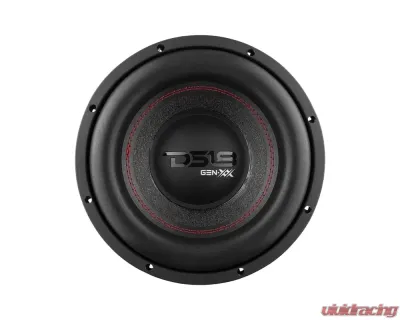

DS18 10" Double Magnet High Excursion Subwoofer - GEN-XX10.4DHE
DS18 10" Double Magnet High Excursion Subwoofer - GEN-XX10.4DHE - Image 2 DS18 10" Double Magnet High Excursion Subwoofer - GEN-XX10.4DHE - Image 2
High excursion is now the mainstream and usually this feature is very expensive, and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user. The GEN-XX10.4DHE is the answer to that issue. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 500w RMS and 1000w Max this sub does not require large amounts of power to come alive and beat up the block.

Features:
  • High Excursion surround for a very high amount of xmax.
  • Great power handling of 500w RMS and 1000w max.
  • Long three voice coil and extended magnet to accommodate the xmax increase.
  • FS of 37.6 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.
Technical Details
  • Nominal Diameter: 10
  • Nominal Impedance: 4+4 Ohms
  • RMS Power Handling: 500W
  • MAX Power Handling: 1000W
  • Sensitivity (1w/1m): 84.6 dB
  • Frequency Response: 20Hz - 1.1KHz
  • Recommended Lo Pass Crossover: 90Hz
  • VC Diameter: 2
  • VC Former Material: Black Aluminum
  • Winding Material: SV
  • Cone Material: Paper
  • Dust Cap Material: PPI
  • Surround Material: Foam
  • Basket Material: Steel
  • Basket Color/Finish: Glossy Red
  • Magnet Material: Ferrite
  • Magnet Weight: 136 Oz
  • Displacement Volume: 1.82L
  • Equivalent Vol: Vas 16.583L
  • Excursion (one way): Xmax 25 mm
  • Free Air Resonance: Fs 37.6 Hz
  • Mechanical Factor: Qms 4.705
  • Electrical Factor: Qes 0.476
  • Total Factor: Qts 0.432
  • Moving Mass: Mms 166.794g
  • Compliance: Cms 0.107mm/N
  • Bl Factor: BL 23.041N/A
  • VC Inductance: Le 0.6741mH
  • Diaphragm Area: Sd 330.64cm2
  • Dc Resistance: Re 3.2+3.2 Ohms
  • Efficiency Bandwidth Product: EBP 78.99
  • Overall Diameter: 10.28 / 261 mm
  • Overall Depth: 7.21 / 183 mm
  • Front Mount Baffle Cutout: 9.14 / 232 mm
  • Mounting Depth: 6.15 / 156mm
  • Motor Diameter: 6.15 / 156mm
Install Instructions:

Other Part Numbers:
DS18 #GEN-XX10.4DHE-FXVX
