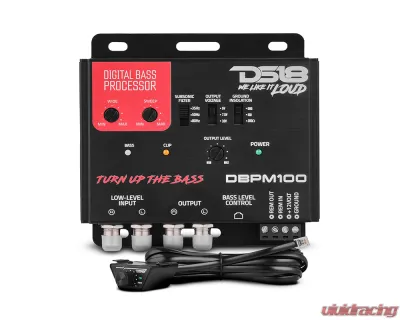

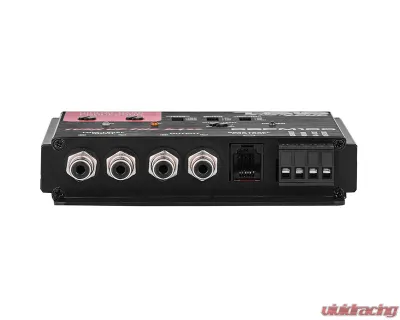

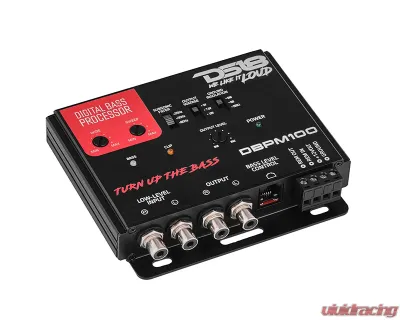

DS18 Digital Bass Processor - DBPM100
DS18 Digital Bass Processor - DBPM100 - Image 4 DS18 Digital Bass Processor - DBPM100 - Image 2 DS18 Digital Bass Processor - DBPM100 - Image 3 DS18 Digital Bass Processor - DBPM100 - Image 4
Upgrade your car audio experience with DS18's DBPM100 and take your audio to the next level, with deep and impactful bass that will revitalize your system. Although sleek and compact, DS18's DBPM100 is equipped with a range of impressive features. The fully adjustable bass processor enhances low frequencies from the original source, allowing you to fine tune your bass with authority. With the hi-level speaker inputs, you can seamlessly integrate this bass processor into your OEM system, maximizing its potential. Controlling your bass has never been easier with the dual knob dash mount remote control included with the DBPM100. Adjusting the settings to suit your preferences is effortless, giving you complete control over your sound. The subsonic filter helps eliminate unwanted frequencies (adjustable at 35Hz, 50Hz, and 80Hz), ensuring clean and distortion-free output. Designed for convenience and durability, DS18's DBPM100 is equipped with a PCB featuring an anti-corrosion coating. This ensures long-lasting performance even in harsh conditions. The LED indicators provide visual feedback on power, bass enhancement, and clipping, making it easy to monitor and optimize your sound. With an operating voltage of 8-17V and low power consumption of 0.24A, this digital bass processor is efficient and reliable. Its compact size allows for easy installation in any application, making it adaptable to any existing system. Experience the power of enhanced bass with DS18's DBPM100.

Features :
  • Digital Bass Restoration Processor
  • 2 Channel Preamp Input / Output
  • Subsonic Filter / Output Voltage / Ground Iso
  • Bass / Power / Clip LED

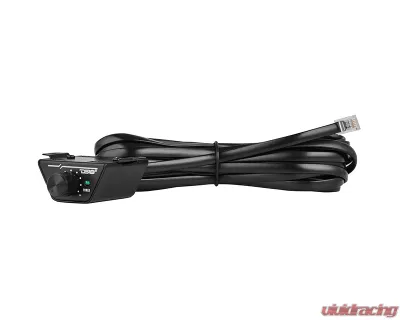

  • Remote Level Control w/ Clip LED
  • Compact Design
Specifications :
  • Operating Voltage : 8-17V
  • Power Consumption : 0.24A
  • Recommended Fuse Rating : 1A
  • Power Input Terminal Size : 16ga
  • LED Indicator : Power / Bass Enhancer / Clip
  • Ground Isolation Switch : Yes (GND/ISO/200?)
  • Hi-Level Speaker Input : No
  • Auto Turn-on Function : No
  • Remote Turn-on (Input / Output) : Yes
  • Remote Level Control : Yes (Bass Enhancer)
  • RCA Connector Type : Tiffany (Silver)
  • Housing Material : Aluminum
  • Body Color / Finish : Black
  • Audio Specifications
    • Frequency Response : 10Hz-20kHz
    • S/N Ratio : 120dB
    • THD : 0.000022
    • Input Sensitivity (Low-Level) : <10V
    • Input Sensitivity (Hi-Level) : N/A
    • Input Impedance : 20Kohms
    • Output Voltage : Selectable (5V/7.5V/10V)
    • Output Impedance : 100ohms
    • Balanced Input Noise Rejection : >60dB
    • Stereo Separation : >80dB
  • Crossover Section & Bass Processor
    • Subwoofer LPF Frequency Cut-off : No (Full Range Signal)
    • Subwoofer Infrasonic Frequency Cut-off : Selectable (35/50/80Hz)
    • Gain : 0~8.8V
    • Center Frequency (Sweep) : 75Hz~120Hz
    • Q Factor (Wide) : 1~3
  • Extra Features
    • Compact Size to easy Installation for Any Applications : Yes
    • Surface Mount Component Technology : Yes
    • Quality Control Verification using Audio Precision Instruments : Yes
    • Remote Level Control with Clip Indicator : Yes
  • Measurements
    • Overall Length : 4.72" / 120mm
    • Overall Width : 4.4" / 113mm
    • Overall Height : 1" / 26mm
