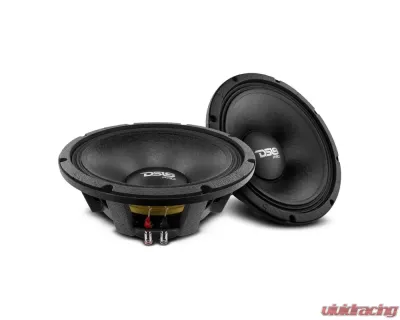

DS18 1000 Watts RMS 8-Ohm 12" Neodymium Mid-Bass Loudspeaker - PRO-XLNEO12MB
Our newest addition just came raging into our massive proaudio line, the PRO-XLNEO12MB! This monster midbass speaker is backed by the full power of neodymium technology, which helps this mammoth midbass speaker handle more power, handle that power more efficiently, operate cooler, and are overall lighter than traditional ferrite motors. This midbass is great for those wanting to bring frequencies of 50+Hz with authority and full volume to accompany all your other frequencies for an amazing sound quality and full audio range. This neo-midbass speaker comes with a gigantic 4 inch voice coil that handles 1000w RMS and 2000w max power so you can be sure that your midbass will turn all heads in a crowd!

Features:
  • 12 inch midbass speaker that provides great cone area so you can achieve that thumping midbass with the correct amp to power them.
  • Huge 4 inch voice coil which handles a staggering 1000w RMS and 2000w Peak power to really power through the music.
  • Neodymium design allows the speaker to handle more wattage more efficiently, while also being lighter and running cooler than traditional ferrite motor structures.
Technical Details
  • RMS Power Handling: 1000W
  • MAX Power Handling: 2000W
  • Sensitivity (1w/1m): 98.2 dB
  • Frequency Response: 45Hz - 7KHz
  • Recommended HI Pass Crossover: 80Hz
  • Pair or Single: Single
MOTOR
  • Voice Coil Diameter: 4” / 99.8mm
  • VC Former Material: Glass Fiber
  • Winding Material: CCAW
  • Cone Material: Paper
  • Dustcap Material: Paper
  • Surround Materia: Cloth
  • Basket Material: Aluminum
  • Basket Color: Sandblasted Black
  • Magnet Material: Neodymium
  • Magnet Weight: 18.5 Oz
  • Displacement Volume: 2.32L / 0.082ft3
THIELE & SMALL PARAMETERS
  • Equivalent Volume: Vas: 22.76L / 0.8ft3
  • Excursion (one way): Xmax: 13.8 mm
  • Free Air Resonance: Fs: 72Hz
  • Mechanical Factor: Qms: 1.61
  • Electrical Factor: Qes: 0.359
  • Total Factor: Qts: 0.294
  • Mechanical Mass: Mms: 83.362g
  • Mechanical Compliance: Cms: 0.059mm/N
  • BL Factor: Bl: 23.553
  • Voice Coil Inductance: Le: 32.64mH
  • Cone Area: Sd: 522.79CM²
  • DC Resistance: Re: 5.2 Ohm
  • Mechanical Mass w/o Air: Mmd: 69.855g
MEASUREMENTS
  • Overall Diameter: 12.32“ / 313mm
  • Overall Depth: 5.92” / 150.5mm
  • Front Mount Baffle Cutout: 11.2“ / 284.5mm
  • Mounting Depth: 5.45” / 138.5mm
  • Motor Diameter: 5.86”/149mm
Install Instructions:

Other Part Numbers:
DS18 #PRO-XLNEO12MB-FXVX
