The best Volvo 740 940 Turbo 1992-98 performance intercooler kit on the market!
This BigPack includes both do88 performance intercooler and intercooler pipe kit.
This kit is for you with high horsepower goals and want to upgrade to the absolutly best! Just changing to our performance intercooler is a big improvement, together with our pressure pipe kit the improvement is huge! Our pressure pipes have considerably better airflow than stock piping, verified by several tests both in car and in our own SuperFlow SF-1020 flow bench.

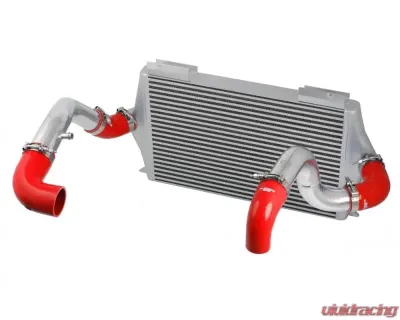

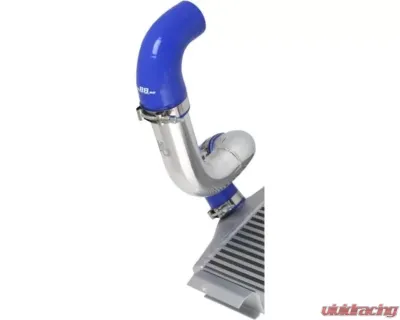

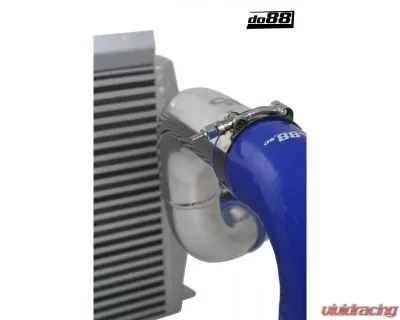

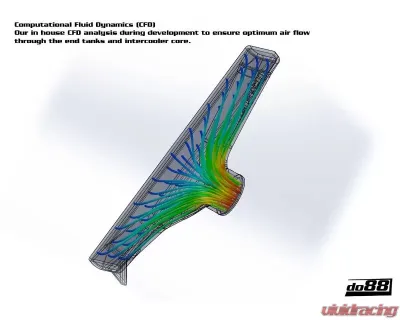

The BigPack includes a full aluminum performance intercooler and a complete 2.5" pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow / cooling performance compared to the original. The do88 performance intercooler are an all-aluminum construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop! The pressure pipes are manufactured in 2.5" mandrel bent aluminum pipes. Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!
Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don't have the performance you need. So only after engine software tune do88 BigPack will give a performance increase over the OEM intercooler! do88 BigPack comes with all hardware necessary for installation.
Features:
This BigPack includes both do88 performance intercooler and intercooler pipe kit.
This kit is for you with high horsepower goals and want to upgrade to the absolutly best! Just changing to our performance intercooler is a big improvement, together with our pressure pipe kit the improvement is huge! Our pressure pipes have considerably better airflow than stock piping, verified by several tests both in car and in our own SuperFlow SF-1020 flow bench.
The BigPack includes a full aluminum performance intercooler and a complete 2.5" pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow / cooling performance compared to the original. The do88 performance intercooler are an all-aluminum construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop! The pressure pipes are manufactured in 2.5" mandrel bent aluminum pipes. Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!
Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don't have the performance you need. So only after engine software tune do88 BigPack will give a performance increase over the OEM intercooler! do88 BigPack comes with all hardware necessary for installation.
Features:
- Core volume: 13945m3 (8465cm3), do88 is 65% larger!

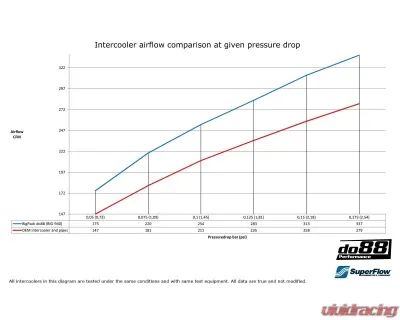

- Air flow at 0.15bar/2.18psi pressure drop: 313CFM (258CFM), do88 21% higher!

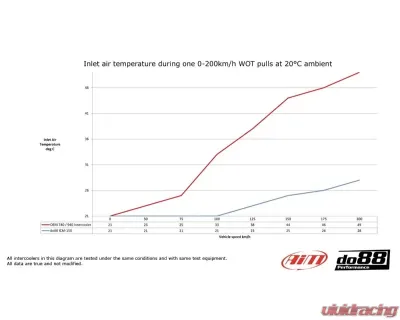

- Post intercooler air temperature at same conditions: 28°C (49°C), do88 21°C lower!
- The OEM intercooler rubber supports in the top brackets needs to be trimmed slightly because of the increased thickness.
- There are no predrilled holes for the AC-condenser, these holes needs to be drilled (easy to do).
- One performance intercooler
- Two 2.5" pressure pipes
- Four silicone hoses
- Eight hose clamps
- Volvo 940 1992-1998
- Volvo 960 1992-1994
- Please note that this brand operates on a drop-shipping model from Germany, delivering directly to customers. Kindly be aware that customers are responsible for any incurred duties and taxes.
