If you're looking to add a touch of JDM flair to your Subaru WRX/STi without compromising on performance, you’ve hit the jackpot with the Stage Series C2R 4th Brake Light Kit. This isn’t just any upgrade; it replaces that bland trim piece on your USDM rear bumper with a high-performance C2R LED Pod, all snugly fit in a custom-molded bracket that keeps things looking clean and OEM. It’s like giving your ride a bit of personality while boosting functionality.

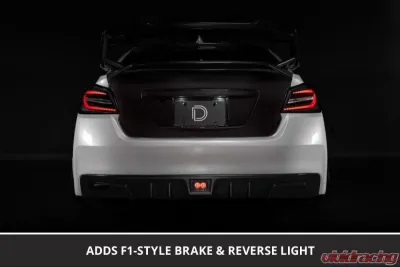

F1-Style 4th Brake Light: This kit isn’t just about looks. The C2R packs a serious punch with its high-power red brake light that kicks in every time you hit the brakes, effectively adding a fourth brake light to your WRX/STi. Plus, there’s an optional F1-style SafetyStrobe feature that flashes three times when you first engage the brakes. It’s a unique look that sets you apart on the road, and if you ever want to dial it back, you can easily disable the strobe feature.
Brighter Backup: Let’s face it—factory reverse lights can be pretty underwhelming. The C2R changes the game with automotive-grade, high-intensity LEDs and custom-engineered TIR optics, giving you a massive boost in brightness when you’re backing up at night. You’ll actually be able to see what’s behind you instead of just hoping for the best.

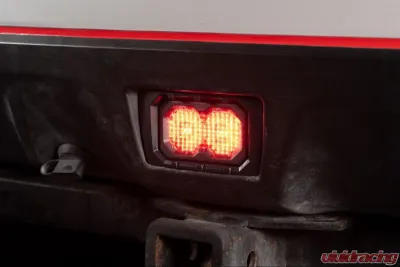

Additional Running Light: The C2R LED Pod isn’t just functional; it also looks good. It features a striking red backlight that serves as an additional running light. Unlike those tiny indicator LEDs you see elsewhere, this backlight fully lights up the TIR optic, giving your Subaru a modern, cohesive look on the road.

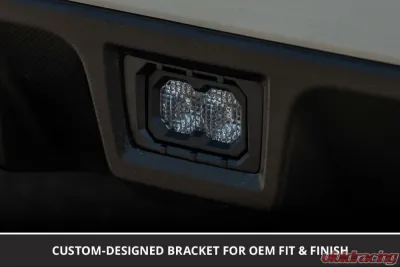

OEM Fit and Finish: Installation is a breeze thanks to the custom-molded bracket designed specifically for the WRX/STi. It mounts flush in the rear bumper, just like the JDM models, and the grained texture matches the surrounding trim perfectly. You won’t have to worry about any awkward gaps or mismatched finishes here.
Focused Output: Traditional optics can be a bit of a letdown, losing light to glare and inefficiency. The C2R’s patented TIR (Total Internal Reflection) optic is a game-changer, directing all the light right where you need it while minimizing glare. Plus, it’s designed to be both the optic and the main lens, which means you get more light output compared to those generic options out there.
Functional Output: Each beam pattern option in the Stage Series lineup is crafted with optical simulation modeling, ensuring you get a highly functional beam pattern. Whether you need a flood pattern or something else, there’s a Stage Series optic that’ll suit your needs perfectly. The flood pattern, for instance, is designed for even illumination with a broad 70x45 degree spread. No more uneven lighting—just solid, reliable output.
Plug-and-Play Installation: You won’t need to be a wiring wizard to get this kit set up. It’s designed for simple, plug-and-play installation. The included wiring harness connects directly with your tail light wiring—no splicing or cutting required. Just route the wiring to the bumper and mount the C2R with the provided hardware. Easy peasy.
Proven Reliability: We don’t mess around when it comes to durability. The Stage Series LED lighting has been rigorously tested for long-term operation in extreme temperatures from -40 to 185 degrees F, plus it’s passed vibration, moisture intrusion, and corrosion tests. It’s built to last, just like your Subaru.
Experience: With over a decade in the game, Diode Dynamics is a name you can trust in automotive LED lighting. We engineer and manufacture our products right here in the USA, using globally sourced materials. That means you’re getting top-notch quality and performance with the latest LED tech. Got a lighting project in mind? Don’t hesitate to reach out—we’re here to help!
Features:
- Simple installation with plug-and-play wiring harness

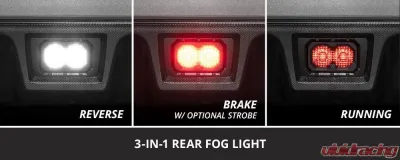

- Adds a powerful reverse light, 4th brake light, and additional running light
- Includes optional F1-style flash pattern
- OEM-grade construction with molded bracket and all-aluminum housing
- Custom-engineered TIR optics for industry-leading output
- Made in USA with Global Materials

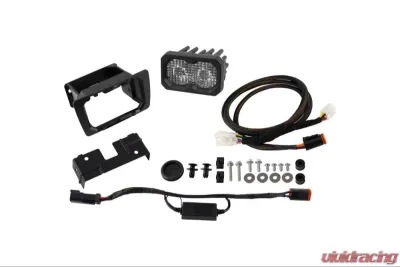

- One (1) Stage Series C2R LED Pod
- One (1) 4th Brake Light Harness
- One (1) 4 Pin DT Safety Strobe Module
- One (1) Mounting bracket and hardware
Specifications:
- Raw Lumens: 2900 lm
- Intensity (cd): Reverse: 1800 cd, Brake: 250 cd, Parking: 12 cd
- Color Temp (CCT): 6000K
- Beam Angle: Flood, 70°x45°
- Power (watts): Reverse: 18.3, Brake: 3.3, Parking: 0.36
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Reverse: 1.43, Brake: 0.25, Parking: 0.03
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Cree XP-L HI, Osram 1414 Pure
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Copper PCB, Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP67 Weatherproof
- Unit Weight (lb): 0.55
- Product Weight (lb): 1.2
- Shipped Weight (lb): 1.8
Fitment:
- Subaru Crosstrek 2016-2017
Products Fitment:
Subaru Crosstrek 2016-2017 DD8068 Diode Dynamics 4th Brake Light Kit.
