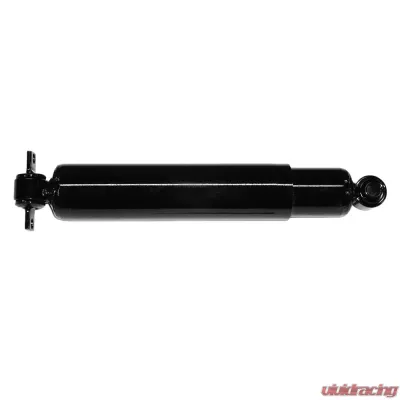

AC Delco Heavy Duty Rear Shock Absorber - 525-42
ACDelco Specialty Heavy Duty Shocks are specifically designed for commercial or severe application use on light trucks and vans, to help handle heavy loads. Designed to handle the heavy-duty demands of fleet applications, ACDelco Specialty Heavy Duty Shocks respond with stability and control. These shocks feature an oversized (1-5/8 in) piston bore, bonded iron piston and compression heads, large piston and piston rod diameter, and heavy duty arc welded end mounts.

Features:
  • Larger body allows for increased fluid capacity and cooler running for superior performance
  • Bonded iron piston and compression head provides exceptional durability
  • Extra-large 1-5/8 inch piston bore and 9/16 inch piston rod diameter for excellent stability and strength
  • Heavy duty arc-welded end mounts for maximum strength and greater resistance to damage
  • The super finished, chromed, piston rod provides anti-corrosion support, a more consistent wear surface, proper seal lubrication, and longer product life
  • Fit and ride tested to ensure that the shocks will fit intended vehicles and applications
Specifications:
  • Length (in): 20
  • Compressed Length: 14.49
  • Travel Length: 9.38
  • Width (in): 4.1
  • Body Diameter: 2.19
  • Weight (lb): 3.4
  • Height (in): 3.3
  • Mounting Hardware Included: No
  • Fully Open Length (mm): 606.298 mm
  • Fully Open Length (in): 23.87 in
  • Compressed Length: 368.046
  • Body Diameter: 55.63
  • Shock Stroke: 238.25
  • Travel Length: 238.25
  • Programming Required: No
  • Shock Absorber Body End Measuring Point: Center Eye
  • Shock Absorber Rod End Measuring Point: Center Barpin
  • Gas Charged: No
  • Adjustable: No
  • Coil Over Springs Included: No
  • Boot Included: No
  • Lower Mount Type: Stud
  • Upper Mount Type: Stud
  • Dust Shield: Yes
Fitment:
  • Cadillac Escalade 2000-2000
  • Chevrolet Express 1500 2000-2014
  • Chevrolet Express 2500 2000-2009
  • Chevrolet Tahoe 2000-2000
  • GMC Savana 1500 2000-2014
  • GMC Savana 2500 2000-2000
  • GMC Savana 3500 2000-2000
  • Chevrolet Express 1500 2001-2014
  • Chevrolet Express 2500 2001-2009
  • GMC Savana 1500 2001-2014
  • Chevrolet Express 2500 2007-2009
  • Chevrolet Express 1500 2008-2014
  • Chevrolet Express 2500 2008-2009
  • GMC Savana 1500 2008-2014
  • Chevrolet Express 1500 2009-2014
  • Chevrolet Express 2500 2009-2009
  • GMC Savana 1500 2009-2014
  • Chevrolet Express 1500 2010-2014
  • Chevrolet Express 3500 2010-2012
  • GMC Savana 1500 2010-2014
  • Chevrolet Express 1500 2011-2014
  • Chevrolet Express 3500 2011-2012
  • GMC Savana 1500 2011-2014
  • Chevrolet Express 1500 2012-2014
  • Chevrolet Express 3500 2012-2012
  • GMC Savana 1500 2012-2014
  • Chevrolet Express 1500 2013-2014
  • GMC Savana 1500 2013-2014
  • Chevrolet Express 1500 2014-2014
  • GMC Savana 1500 2014-2014

Other Part Numbers:
AC Delco #88959149
