  See more parts for Cadillac Escalade
Select the year of your Cadillac Escalade:

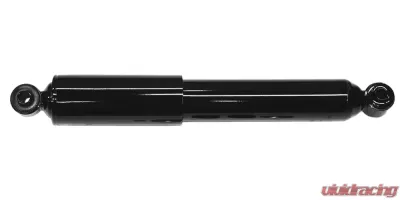

AC Delco Heavy Duty Front Shock Absorber - 525-36
ACDelco Specialty Heavy Duty Shocks are specifically designed for commercial or severe application use on light trucks and vans, to help handle heavy loads. Designed to handle the heavy-duty demands of fleet applications, ACDelco Specialty Heavy Duty Shocks respond with stability and control. These shocks feature an oversized (1-5/8 in) piston bore, bonded iron piston and compression heads, large piston and piston rod diameter, and heavy duty arc welded end mounts.

Features:
  • Larger body allows for increased fluid capacity and cooler running for superior performance
  • Bonded iron piston and compression head provides exceptional durability
  • Extra-large 1-5/8 inch piston bore and 9/16 inch piston rod diameter for excellent stability and strength
  • Heavy duty arc-welded end mounts for maximum strength and greater resistance to damage
  • The super finished, chromed, piston rod provides anti-corrosion support, a more consistent wear surface, proper seal lubrication, and longer product life
  • Fit and ride tested to ensure that the shocks will fit intended vehicles and applications
Specifications:
  • Shock Absorber Rod End Measuring Point: Center Eye
  • Body Diameter: 2
  • Fully Open Length (mm): 418.846 mm
  • Fully Open Length (in): 16.49 in
  • Compressed Length: 10.95
  • Travel Length: 5.53
  • Compressed Length: 280.67
  • Body Diameter: 50.8
  • Travel Length: 140.46
  • Shock Stroke: 140.46
  • Mounting Hardware Included: No
  • Upper Mount Type: Eyelet
  • Shock Absorber Body End Measuring Point: Center Eye
  • Gas Charged: No
  • Lower Mount Type: Eyelet
  • Adjustable: No
  • Boot Included: No
  • Dust Shield: Yes
  • Coil Over Springs Included: No
  • Programming Required: No
Fitment:
  • Cadillac Escalade 2000-2000
  • Chevrolet Astro 2000-2005
  • Chevrolet K2500 2000-2000
  • Chevrolet K3500 2000-2000
  • GMC K2500 2000-2000
  • GMC K3500 2000-2000
  • GMC Safari 2000-2005
  • Chevrolet Astro 2001-2005
  • GMC Safari 2001-2005
  • Chevrolet Astro 2002-2005
  • GMC Safari 2002-2005
  • Chevrolet Astro 2003-2005
  • GMC Safari 2003-2005
  • Chevrolet Astro 2004-2005
  • GMC Safari 2004-2005
  • Chevrolet Astro 2005-2005
  • GMC Safari 2005-2005

Other Part Numbers:
AC Delco #88959143

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2000
 Cadillac Escalade
2000-2005
 Chevrolet Astro
2000
 Chevrolet C2500
2000
 Chevrolet C3500
2000
 GMC C2500
2000
 GMC C3500
2000
 GMC Safari

AC Delco Banner

Who is AC Delco?

AC Delco is a world-renowned company and is considered a premier supplier of Original Equipment parts. The company’s roots can be traced back to more than 100 years. Today, AC Delco has established itself as the global leader when it comes to automotive replacement parts.

Wide Range of Products

AC Delco has one of the most comprehensive parts list available in the market. It has over 90,000 auto parts across 37 product lines and is distributed all over the globe. Over the years, they have built a reputation as the leading source of high-quality auto parts. They have grown into one of the biggest manufacturers and caters to different industries which include the marine and industrial equipment sector.

The company offers various parts such as spark plugs, batteries, oil filters, wiper blades, air filters, and brakes. They also have repair components for radiators, alternators, chassis and vehicle cooling systems.

The Best Only Trusts the Bests

AC Delco has a long-standing partnership with General Motors and has since provided them with top-quality and reliable parts.

Purchase AC Delco Products at Vivid Racing

AC Delco has always been a part of the automotive industry. They are considered as one of the pillars and have played a vital role in helping shape the way we know automobiles today. If you want parts that have passed the test of time, then this is the brand for you. They have been manufacturing parts way before most of us are even born and have always kept that tradition of creating products you can rely on. To know more about AC Delco, visit Vivid Racing and check out their list of products that would fit your needs.





A WHOLE LOT OF PART PROTECTION

Most GM OE and Gold (Professional) lines are covered under a 24-month/unlimited-mile limited warranty and our Silver (Advantage) line limited warranties are 12 months/unlimited miles. Click Here for full warranty details.
