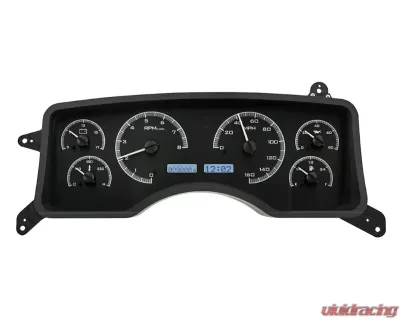

By 1990, Ford had really nailed the Fox platform, but let’s be honest—enthusiasts have taken it to places the engineers probably never imagined. To keep up with the growing Fox-body community, we’ve packed the stock cluster with six analog gauges and twin LCD message centers. This setup gives you a ton of info right at your fingertips. And if you want to take it a step further, you can expand it with our BIM-series add-on modules. This isn’t just another gauge package; it’s a game changer.

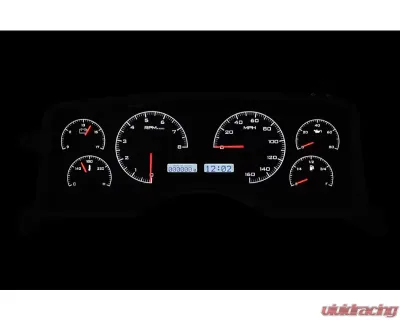

One of the first things you’ll notice is the fully lit needles and backlit faces, plus those bright LCD message centers. But it’s what you can’t see that really sets the VHX Series apart. We’ve got micro-controlled precision stepper motors and solid-state sensors that provide accuracy you can count on. Plus, you can customize the display feedback to fit your style. And don’t sweat the warranty; we’ve got you covered with a limited lifetime warranty that’s become the gold standard for Dakota Digital.

Everything is engineered and made right here in Sioux Falls, South Dakota. This isn’t just a product; it’s a revolution in instrumentation. Just a heads-up, you’ll need to use your original front bezel to get this baby installed.

Speedometer:

• 0 - 160 MPH (if you prefer metric, there's a version that goes 0-255 km/h)

Tachometer:

• 0 - 8,000 RPM

Oil Pressure:

• 0 - 80 psi

Water Temperature:

• 100 - 260°F (or 40 - 120°C if you want metric)

Fuel Level:

• Shows E, 1/4, 1/2, 3/4, and F

Voltmeter:

• 9 - 17 VDC

Standard Displays:

• Odometer (settable once, can track up to a million miles)
• Dual (A/B) Trip Meter (0 - 9,999.9)
• 12-hour Clock

Performance Meters:

• 0 - 60 MPH Timer (0 - 100 km/h)
• 1/4 and 1/8 mile times
• 1/4 and 1/8 mile end speeds (trap speed)
• High speed recall
• High RPM recall

Indicators:

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/On & Engaged when equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 (when equipped)
• Wait to Start (when equipped)
• Two Auxiliary input indicators with user-programmable labels
• Each analog gauge has a red LED indicator for quick warning notices (except speedometer)

Colors:

• Over 30 user-selectable color options let you change the needle, sweep, and digital TFT display colors independently.

Brightness:

• Daytime and nighttime brightness can be easily adjusted through the HDX setup menu. Want more control? The DIM-1 accessory lets you adjust it on the fly.

Themes:

• With 12 factory preset color themes, you can quickly set up a stunning look. Or go all out and choose every color zone yourself for ultimate customization.

Technology:

• Full LED backlighting gives you a sharp and clear gauge package, making it easy to read day or night. The full RGB backlighting means you can dial in the exact color you want, whether you’re after an OE look or something a bit more daring.

Fitments:

• Ford Mustang 1990-1993

Note:

• Expected Time of Arrival: 12-16 weeks

So if you’re looking to upgrade your Mustang’s dash, this VHX system is where it’s at. It’s not just about looks; it’s about getting the info you need, when you need it. Trust me, once you’ve got this in your ride, you’ll wonder how you ever drove without it.
