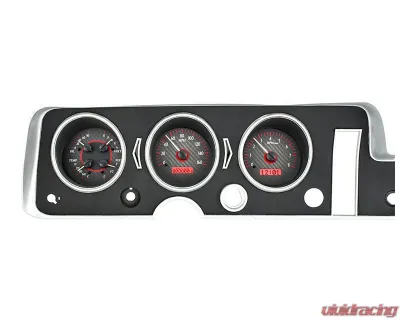

So, you’ve got a '68 Pontiac A-body, huh? That iconic Coke-bottle design isn’t just about looks; it’s about the whole experience, and that includes the dashboard. If you’re looking to upgrade your ride with some serious instrumentation, you’re in the right place. Our MHX Series is designed to fit right into your stock gauge carrier, so no need to butcher your dash—just bolt it in and get rolling.

You can choose between a slick Black or Silver Alloy face styling, and the LED backlighting comes in blue, red, or white. It’s all about making that dashboard pop and giving you the visibility you need when you’re cruising down the road or tearing up the track. We’ve included sensors for oil, water, and speed right out of the box, so you can keep an eye on your engine’s health without any extra hassle. Plus, for those of you who want to take it to the next level, we offer BIM-expansion modules separately to give you even more options.

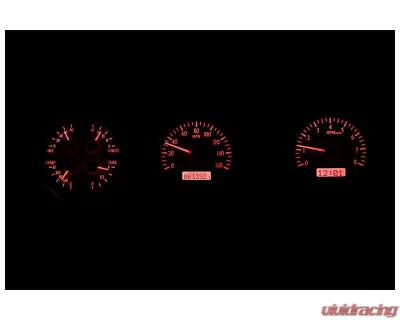

What sets the MHX Series apart? For starters, those fully lit needles and backlit faces are a game-changer. You won’t be squinting at your gauges anymore. The LCD message centers are bright and easy to read, whether it’s day or night. Inside, you’ll find micro-controlled precision stepper motors and solid-state sensors that offer accuracy that you can trust. And let’s not forget the customizable display feedback—because who doesn’t want their gauges to reflect their personal style?

All of this is backed by a limited lifetime warranty, which is pretty much the gold standard for Dakota Digital instrumentation systems. And just so you know, everything is engineered and manufactured right here in Sioux Falls, South Dakota, so you’re getting quality craftsmanship.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (optional metric version 0-195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

Digital Message Centers

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0-9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi displayed in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C displayed in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/On & Engaged when vehicle is equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4 x 4 (When vehicle is equipped)
• Wait to Start (When vehicle is equipped)

Included Sensors

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness.
• Bushings: Each kit comes with various NPT bushings for easy installation.

Control Box Dimensions

5.5" x 3.5" x 1"

Calibration

Setting up your Dakota Digital instruments is a breeze with the included pushbuttons. Just mount them where they’re easy to reach, and you’ll be calibrating your speedometer and accessing all that great data in no time.

In short, if you want to elevate your Pontiac’s instrumentation game, the MHX Series is where it’s at. It’s a solid investment in both style and functionality that you won’t regret.
