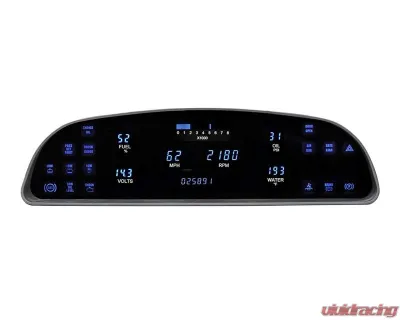

Dakota Digital MFD3-94C-CAP-Z Instrument System
The Dakota Digital MFD3-94C-CAP-Z is an advanced full 6 gauge instrument system designed specifically for the 1994-1996 Chevrolet Caprice and 1994-1995 Chevrolet Impala SS. This system integrates seamlessly into the OEM instrument cluster, providing a modern digital interface while retaining the classic aesthetic of your vehicle's dashboard.
Key Features
- Speedometer: Measures 0-255 MPH, with an optional metric version available (0-255 km/h).
- Tachometer: Displays engine RPM from 0 to 17,500 RPM, ideal for high-performance builds.
- Oil Pressure Gauge: Ranges from 0 to 99 psi, ensuring your engine maintains optimal pressure.
- Water Temperature Gauge: Monitors temperatures from 0 to 300°F, with a metric option of 0-150°C.
- Fuel Level Indicator: Provides readings from 0 to 99% for accurate fuel monitoring.
- Voltmeter: Displays voltage levels from 8 to 17 VDC, keeping you informed about your electrical system.
Digital Message Centers
- Odometer: One-time user settable, capable of tracking up to a million miles.
- Dual Trip Meter: Tracks two separate trip distances (0-9,999.9).
- Performance Meters: Includes 0-60 MPH timer, quarter-mile time, and end speed (trap speed).
- High-speed and high RPM recall features for performance analysis.
Built-in Indicators
- Turn Signal Indicators (Left/Right)
- High Beam Indicator
- Check Engine Light
- Parking Brake Indicator
- Cruise Control Status (when equipped)
- Optional Gear Position Indicator (requires GSS-3000 sensor)
- 4x4 Indicator (when equipped)
- Wait to Start Indicator (when equipped)
Included Sensors
- Water Temperature Sensor: 1/8" NPT, ground isolated sensor with a 10 ft harness.
- Oil Pressure Sensor: 1/8" NPT solid state sensor with a 10 ft harness.
- Cable Driven Speed Sensor: Replaces Ford and GM style speedometer cables, requires 5" clearance for installation.
- Bushings: Includes 1/8" to 1/4", 3/8", and 1/2" NPT bushings, along with 12mm and 16mm x 1.5 thread bushings.
Control Box Dimensions
- Dimensions: 5.5" x 3.5" x 1"
Calibration
The system is user-friendly, with calibration performed via easy-to-access push buttons. These buttons allow you to set the speedometer, cylinder count, and fuel level gauge. Once configured, they provide access to the extensive data available in the Digital Message Centers.
Fitment
- Chevrolet Caprice: 1994-1996
- Chevrolet Impala SS: 1994-1995
Upgrade your dashboard with the Dakota Digital MFD3-94C-CAP-Z, designed for precision and functionality in your classic Chevy.
Other Part Numbers:
Dakota Digital #DAK-MFD394CCAPZ
