If you're looking to upgrade your ride's dashboard, the Dakota Digital Series III instrument system is where it's at. This setup isn't just about looking good; it’s packed with tech that actually makes a difference. The high-brightness vacuum fluorescent displays are designed to last, giving you reliable readings without the fuss. Trust me; you want accuracy when you're behind the wheel.

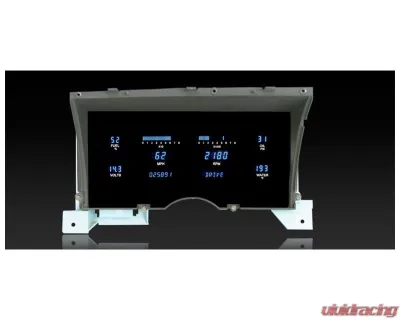

This full 6-gauge instrument system fits right into the OEM bezel for your 1986-1993 Chevy/GMC S-10, S-15 pickups, and 1986-1994 Blazers/Jimmys. Just a heads up, if you’ve got the factory oil pressure and water temp gauges, you’re good to go. But if your truck has stock oil and water warning lights, this won’t fit. For models from '89 to '93, it’s the same story—make sure you don’t have a factory tachometer or those warning lights, or you’ll run into issues. Just remember, the bezel isn’t included; you’ll need to use your OEM or a reproduction bezel.

Specifications:

• Speedometer: 0 - 255 MPH (or 0-255 km/h if you prefer metric)
• Tachometer: Ranges from 0 to 17,500 RPM—plenty of room for those high revs.
• Oil Pressure: 0-99 psi, so you can keep an eye on your engine health.
• Water Temperature: Monitors from 0 to 300°F (or 0-150°C for the metric fans).
• Fuel Level: Tracks from 0-99%, ensuring you never run out of gas unexpectedly.
• Voltmeter: Covers 8-17 VDC, perfect for keeping tabs on your electrical system.
• Color Options: Choose between blue or teal for that personal touch.

Digital Message Centers:

• Standard Displays:
  • Odometer: Million-mile, one-time user settable.
  • Dual Trip Meter: Tracks up to 9,999.9 miles.
• Performance Meters:
  • 0-60 MPH Timer: Because who doesn’t love a little speed test?
  • 1/4 Mile Time: Track your drag strip runs.
  • 1/4 Mile End Speed: Know your trap speed.
  • High-speed recall and RPM recall for those bragging rights.

Built-in Indicators:

• Turn signals, high beam, check engine, parking brake, and cruise control indicators—everything you need right at your fingertips.
• Keep in mind, not all OEM indicator functions are replaced, so you might need to repurpose some unused indicators if you want more.

Included Sensors:

• Water Temperature Sensor: 1/8" NPT with a 10 ft harness.
• Oil Pressure Sensor: Solid state, also 1/8" NPT with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces Ford/GM style cables with a 10 ft harness. Just make sure you’ve got about 5" clearance around the output to avoid any obstructions.
• Bushings: Comes with a variety of bushings for different sizes, so you can fit it just right.

Control Box Dimensions:

5.5" x 3.5" x 1"—compact enough to fit in tight spaces.

Calibration:

Easy as pie with the push-button setup. Just mount those buttons where you can reach them, and you’re set to calibrate your speedo and fuel level gauge. Once you’re dialed in, those same buttons will give you access to all the cool info in the Digital Message Centers.

Fitment:

• Chevrolet S-10: 1986-1993
• GMC S-15 Pickups: 1986-1990
• GMC Jimmy: 1986-1994

So, if you’re ready to ditch the old gauges and step up your game, this Dakota Digital system is a solid choice. It’s got the features you need and the look you want—what more could you ask for?
