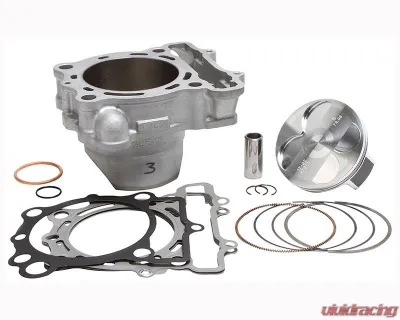

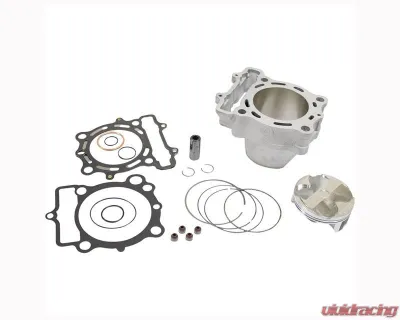

Cylinder Works 81mm Big Bore Cylinder Kit Kawasaki 2021-2024
$752.95
The 81mm Big Bore Cylinder Kit is the perfect upgrade to improve the power and performance of your dirt bike significantly. This precision-engineered kit increases the displacement, offering a tangible increase in torque and power, especially noticeable in acceleration and the mid-to-high rev range.

Made from high-quality materials, the kit includes a reinforced cylinder, a high-performance piston with anti-friction coating, segments, and specific gaskets, ensuring durability and high performance even in extreme conditions. All components are designed to fit perfectly with the original engine, simplifying installation without the need for complex modifications.

Increased displacement: Increased performance thanks to the 81mm diameter.

Don't settle for standard performance: Buy the 81mm Big Bore Cylinder Kit today and experience the adrenaline of superior power on the track or on the trails. Your bike deserves the best, and with this kit, you will always be one step ahead!


Specifications:
  • Description: Big Bore Cylinder Kit
  • Compression Ratio: 14.1:1
  • Cylinder Diameter: 81 mm
  • Displacement: 270 cc
  • Engine Type: 4-Cycle
  • Size Over Standard: 3.00mm
  • Includes: Cylinder Piston Kit & Top End Gasket Kit


Fitment:
  • Kawasaki KX250F 2021-2024
  • Kawasaki KX250X 2021-2024

Other Part Numbers:
Cylinder Works #422-31017K

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2021-2024
Kawasaki KX250F
2021-2024
Kawasaki KX250X

Cylinder Works Banner

ABOUT CYLINDER WORKS

As an alternative to expensive OEM cylinders or the time-consuming process of re-plating existing cylinders, Cylinder Works provides enthusiasts with a complete line of OEM-quality dirt bike and ATV replacement cylinder kits in standard and big bore sizes. Additionally, Cylinder Works boosts horsepower with a full line of high-compression and large bore cylinder kits that look like stock but are not. Each kit includes the piston, rings, and gaskets necessary to quickly return to the trail or track.

ABOUT CYLINDER WORKS PRODUCTS

Cylinder Works cylinders are new, not remanufactured, cast aluminum, nickel silicon carbide (NSC) electroplated stock bore cylinders that look and perform identically to OEM cylinders. NSC is a nickel and silicon carbide composite material that provides an excellent wear resistant surface with oil retention properties. Cylinders are then shaped perfectly to the precise bore dimension and finish required for proper ring seal and oil retention. The OEM-style stock bore cylinder kit is complete with hand-matched forged Vertex pistons and top-end gaskets. These kits provide a consistent output of standard horsepower. The OEM-style cast aluminum replacement cylinder head comes complete with cam caps and cam cap bolts. With a blended bowl and competition valve job, an unshrouded combustion chamber improves airflow. Ports with a stock shape perform better. The nickel/aluminum valve seats and guides on the C630 are kinder to the valve, resulting in less wear. Reduced valve guides accommodate high-lift cams for increased torque and power. The valves, springs, retainers, and lifters are sold separately.

Additionally, the Vertex pistons feature unique piston profiles and compression ratios and are available in sizes A, B, C, and D. Each Vertex piston is then hand-matched to fit perfectly inside each Cylinder Works cylinder. Vertex's gasket kit includes all of the gaskets required to rebuild your top end. The kit includes head, base, and exhaust gaskets, as well as O-rings for when the cylinder and head are removed for routine maintenance. Moreover, the CNC machined, to exacting tolerances, power valves are hard anodized for superior wear resistance. These features contribute to increased performance and service life. The larger bore version provides adequate clearance for the larger piston. All the products are made in the United States of America.

CYLINDER WORKS PRODUCT LINE

Their product line features standard bore cylinders, standard bore cylinder kits, big bore cylinder kits, cylinder heads kits, power valve kits, standard bore gasket kits, standard bore cylinder kits with high compression kits, big bore gasket kits, and many more.

CYLINDER WORKS PRODUCT LINE IN VIVID RACING

The products of Cylinder Works included in Vivid Racing are: top end gasket sets, seals, replacement pistons, standard bore cylinder kits, big bore cylinder kits, replacement cylinder heads, stroker kits, and valves.
