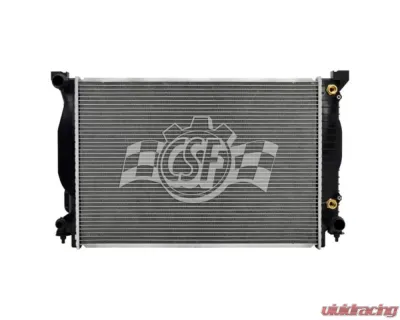

CSF Radiators OEM Plastic Radiator for Audi A4 3.0L 2002-2005, Direct Fit Replacement - 3452
CSF Radiators OEM Plastic Radiator for Audi A4 3.0L 2002-2005, Direct Fit Replacement - 3452 - Image 2 CSF Radiators OEM Plastic Radiator for Audi A4 3.0L 2002-2005, Direct Fit Replacement - 3452 - Image 2

CSF Radiators Engine Coolant Radiator - Part Number: 3452

Introducing the CSF Radiators Engine Coolant Radiator, part number 3452, designed specifically for the Audi A4 3.0L from 2002 to 2005. If you're looking to enhance your vehicle's cooling efficiency and prolong the life of your engine, this radiator is a reliable choice. Crafted with precision and expertise, the CSF 3452 radiator ensures that your engine remains cool under pressure, allowing for optimal performance on the road.

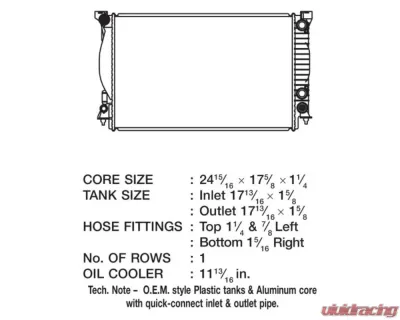

Specifications:

  • Radiator Type: Crossflow
  • Rows: 1
  • Core Length: 24 15/16"
  • Core Width: 16 7/8"
  • Core Thickness: 1 1/4"
  • Core Material: Aluminum
  • Tank Material: Plastic
  • Inlet Location: Upper Driver Side
  • Outlet Location: Lower Passenger Side
  • Inlet Diameter: 1 1/4"
  • Outlet Diameter: 1 5/16"
  • Oil Cooler: 11 13/16" (high-efficiency Plate Type)

Features:

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks made from Virgin Grade Engineered plastic resins, enhanced for strength and durability
  • Gaskets crafted from Special Grade "EPDM" rubber for extreme temperature resistance
  • High Performance "Multi-Louvered Design" fins for superior cooling
  • 100% leak tested at 150% of operating pressure for reliability
  • Industry-leading packaging that passes a "10 Foot Drop Test" standard
  • Thoroughly assembled, torqued, and tested components for quality assurance

Customer Feedback:

Many customers have praised the CSF 3452 for its reliable performance and easy installation. One satisfied user mentioned, "I replaced my old radiator with the CSF 3452, and I've noticed a significant drop in engine temperature. The fit was perfect, and it seems to be built to last!" Another reviewer commented, "It's refreshing to find a product that lives up to its promises. My Audi is running cooler than ever!"

Why Choose CSF Radiators?

CSF has been a trusted name in automotive cooling systems for over 50 years, with a reputation for high-quality manufacturing and innovative designs. With over 30 million units sold globally, CSF radiators are engineered and wind tunnel tested to ensure top-notch cooling performance. Their commitment to using advanced technologies and materials means you can rely on the 3452 radiator to keep your engine running smoothly.

Fitment:

  • Audi A4 2002-2005

Notes:

  • When replacing your radiator, always check the old radiator pressure cap for wear and tear.

Other Part Numbers:
CSF Radiators #csf3452

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2002-2005
 Audi A4
CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
