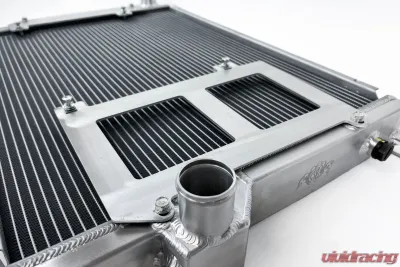

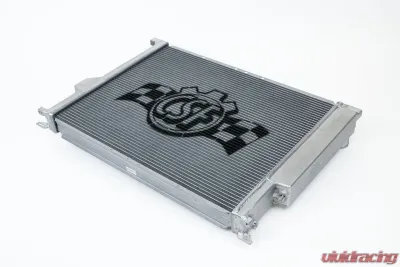

CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211
CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211 - Image 7 CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211 - Image 2 CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211 - Image 3 CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211 - Image 4 CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211 - Image 5 CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211 - Image 6 CSF Cooling - Racing & High Performance Division BMW S54 Swap E36 High-Performance All-Aluminum Radiator Center - 7211 - Image 7

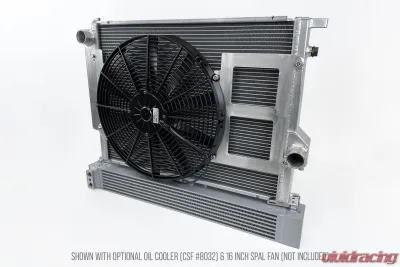

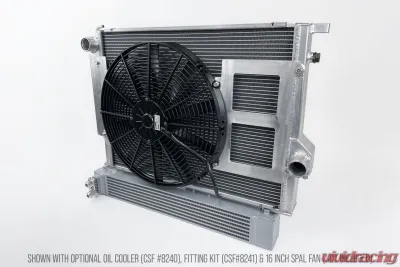

CSF's industry-leading reputation and deep knowledge of high-performance BMW cooling systems offered an edge when designing such a unique cooling system. Combining the experience from producing the best cooling systems for the E36 and E46, CSF was able to design and produce an innovative solution that covers the widest range of S54 swap customers possible.Because the S54 requires a much more robust oil cooling system than the E36's S52, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.CSF manufactures the most advanced and efficient radiator in the industry for your S54 Swap E36. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.


  • 2-Row - 42mm Ultra-High-Performance Core

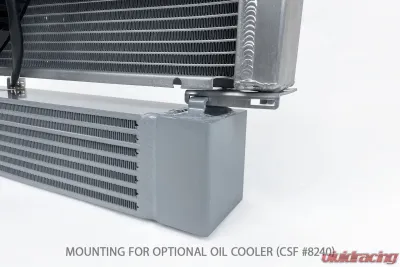

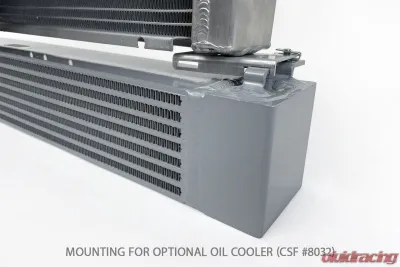

  • Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • 2-Year Limited Warranty
  • CSF's Exclusive B-Tube Technology
  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
  • 100% All Aluminum TIG-Welded Construction
  • Smooth Satin Finish
  • All-Aluminum Race Style Drain Plug
  • Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
  • Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)


  • ADD-ON: 8032
  • Coolant Hose Inlet Connection Type: OE Type Connection
  • Coolant Hose Outlet Connection Type: OE Type Connection
  • Core Height: 550mm
  • Core Material: Aluminum
  • Core Row Quantity: 2
  • Core Thickness: 42mm
  • Core Width: 414.5mm
  • Down Flow Or Cross Flow Type: Cross Flow
  • Finish/Color: Satin
  • Frame Included: No
  • Grade Type: Performance
  • Inlet Connector Type: Slip On
  • Inlet Diameter: 1.5 in.
  • Inlet Location: Top Left
  • Installation Type: Engine Swap Application
  • Internal Engine Oil Cooler: No
  • Internal Transmission Oil Cooler: No
  • Mounting Hardware Included: No
  • Mounting Type: Mounts with OE Hardware
  • Outlet Connector Type: Slip On
  • Outlet Diameter: 1.5 in.
  • Outlet Location: Bottom Right
  • Prop 65 Yes/No: No
  • Radiator Cap Included: No
  • Tank Material: Aluminum
  • Thermostat Included: No
  • Title: BMW S54 Swap E36 High-Performance All-Aluminum Radiator

Other Part Numbers:
CSF Radiators #csf7211

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1995-1998
 BMW 316i
1994-1999
 BMW 318i
1995-1999
 BMW 318is
1994-1998
 BMW 318tds
1995-1999
 BMW 318ti
1992-1998, 2001-2005
 BMW 320i
2000
 BMW 323Ci
1992-2000
 BMW 323i
1998-1999
 BMW 323is
2001-2006
 BMW 325Ci
1992-1997, 2001-2005
 BMW 325i
1992-1995
 BMW 325is
2001-2005
 BMW 325xi
2000
 BMW 328Ci
1992-2000
 BMW 328i
1996-1999
 BMW 328is
2001-2006
 BMW 330Ci
1998-1999, 2001-2005
 BMW 330i
2001-2005
 BMW 330xi
1993-1999
 BMW M3
CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
