  See more parts for BMW 135i
Select the year of your BMW 135i:
CSF Cooling - Racing & High Performance Division BMW N54 High-Performance Stepped Core Intercooler - Black Front - 8127B

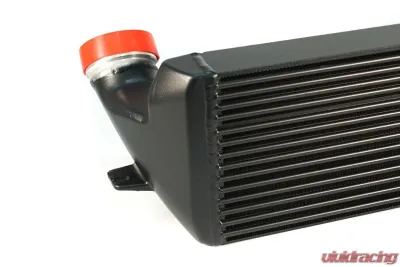

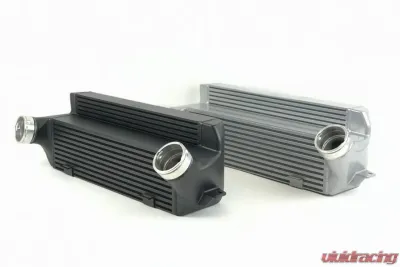

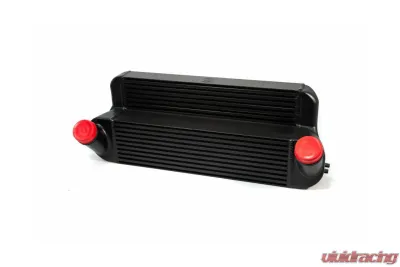

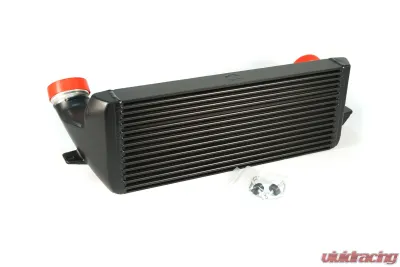

CSF Cooling - Racing & High Performance Division BMW N54 High-Performance Stepped Core Intercooler - Black Front - 8127B - Image 4 CSF Cooling - Racing & High Performance Division BMW N54 High-Performance Stepped Core Intercooler - Black Front - 8127B - Image 2 CSF Cooling - Racing & High Performance Division BMW N54 High-Performance Stepped Core Intercooler - Black Front - 8127B - Image 3 CSF Cooling - Racing & High Performance Division BMW N54 High-Performance Stepped Core Intercooler - Black Front - 8127B - Image 4
The BMW N54 engine is well known for its incredible power potential. Many owners are pushing well over 500hp out of these motors and some have seen as high as 1000hp. Truly amazing performance can be achieved when using the proper components from quality high performance companies, including a worthy high performance intercooler to handle the increased Intake Air Temperatures (IATs) generated from more power and higher boost pressures associated with these built vehicles.The OEM intercooler is made from plastic end tanks that are crimped onto an aluminum tube/fin core that is 4 inches thick (105mm core width) and is 5 inches in height (127mm). This may be enough to keep IAT's in check on a completely unmodified / stock vehicle, but once users to start increase power through bolt-on modifications, tuning, and built engines, the OEM intercooler will become the Achilles Heel of the system with IAT's skyrocketing out of the optimal range and drastically lowering the performance capabilities of the vehicle. Enter CSF with their stepped core design, bar/plate high performance N54 intercooler. This "drop-in fit" intercooler, which requires no modifications to install, has a bottom / larger section that is 5.5in thick (140mm) with a front face that is massive 8.25in tall (210mm). Made from CSF's industry exclusive rounded bar/plate core design. The rounded front face of the cooling bars allows for better airflow into the core. Airflow hits the core surface, and rather than scattering like it does with hitting the face of a flat bar that all competing products have, it travels around the face of the round bar and into core for much better performance than both the OEM design (flat face) and all other aftermarket competitors (all have flat face tubes or bars). A huge improvement over the OEM unit, and enough to handle even the most advanced N54 engine builds. Good for 1000hp no problem!The CSF N54 Intercooler's Stepped Core Design maximizes surface area contact and internal intake air-flow volume. The Rounded Front Face Bar/Plate Design optimizes airflow through the core and is a true "Drop-in Fit" Plug-and-Play Design.The CSF #8127B comes in a black finish. It is also available in silver (CSF #8127)


  • The Only TRUE Plug-and-Play Solution Compared to the Rest
  • No Cheaper Silicone Hose Clamp System, BMW Style "Quick-Connect" Machined Fittings
  • OEM Mounting Locations with Fitment Kit and Instructions Included
  • Clears OEM Crash Bar, No Modification to Install with No Cutting or Trimming Required
  • Bottom/Larger: Section: 5.5" Thick (140mm)
  • 40'F Drop in Temperatures When Compared to the OEM Intercooler After Multiple Repeated Runs
  • Good for Over 1000 HP!


  • Color: Black
  • Core Color: Black
  • Core Material: Aluminum
  • Core Row Quantity: 1
  • Grade Type: Performance
  • Inlet Fitting Gender: Male
  • Inlet Tank Material: Aluminum
  • Installation Type: Drop-In Fit Installation
  • Mounting Hardware Included: No
  • Outlet Fitting Gender: Male
  • Prop 65 Yes/No: No
  • Title: BMW N54 High-Performance Stepped Core Intercooler - Black
  • Type: Air-to-Air
  • Universal Or Specific Fit: Specific

Other Part Numbers:
CSF Radiators #csf8127B

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2007-2013
 BMW 135i
2011
 BMW 1M Coupe
2005-2013
 BMW 335i
2011-2013
 BMW 335is
2007-2008
 BMW 335xi
2013-2015
 BMW X1
2009-2016
 BMW Z4
CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
