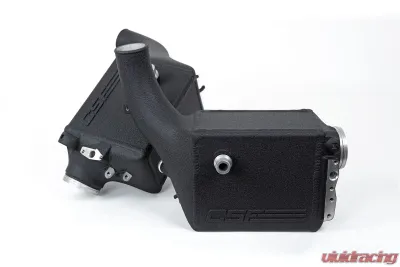

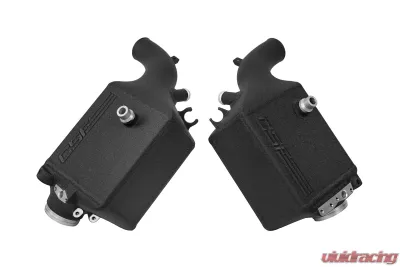

CSF Cooling - Racing & High Performance Division BMW F9X M5/M8 Twin Charge-Air-Cooler Set - 8178
CSF Cooling - Racing & High Performance Division BMW F9X M5/M8 Twin Charge-Air-Cooler Set - 8178 - Image 5 CSF Cooling - Racing & High Performance Division BMW F9X M5/M8 Twin Charge-Air-Cooler Set - 8178 - Image 2 CSF Cooling - Racing & High Performance Division BMW F9X M5/M8 Twin Charge-Air-Cooler Set - 8178 - Image 3 CSF Cooling - Racing & High Performance Division BMW F9X M5/M8 Twin Charge-Air-Cooler Set - 8178 - Image 4 CSF Cooling - Racing & High Performance Division BMW F9X M5/M8 Twin Charge-Air-Cooler Set - 8178 - Image 5
The F90 M5 & F9X M8 are truly worthy successors to the F1X platform. BMW's S63 Twin-Turbo V8 is a tried and true power plant capable of big numbers. Like most turbo engines, cranking up the boost for those big gains creates a lot more heat. Fortunately for F9X owners, CSF is here to help keep those Intake Air Temperatures (IATs) down and your power up. CSF used CFD analysis and testing to create the largest charge-air-cooler that could fit in the factory location. The custom designed Liquid-to-Air Intercooler cores are 100% larger than the factory coolers. The single piece design integrates the charge pipe creating the strongest system possible.The CSF #8178 Twin Charge-Air-Cooler Set comes with a Professional "Crinkle Black" Powder-Coated Finish. It is also available in Custom Colors & Finishes.The CSF Charge-Air-Coolers boast a nearly 100% larger core size than factory per side. This greatly increases the capacity for heat transfer from the hot charge air from your F9X's Turbos.


  • Custom Designed CSF Liquid-To-Air Intercooler Core (CFD Analysis and Testing Completed to Ensure Optimal Performance)
  • Significantly Reduces Intake Air Temperatures (IATs), Improves 60-130MPH Time By around 0.30 Seconds
  • 100% Increase in Core Volume Per Each Charge Cooler Compared to the OEM Charge Air Coolers

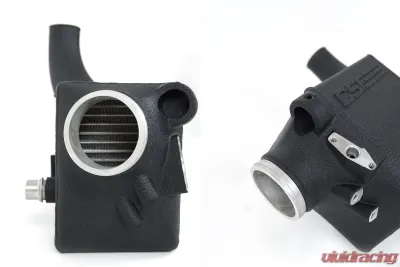

  • 1-Piece Seamless Air Inlet End Tanks with Integrated Charge Pipes
  • Integrated E85/Methanol Injection Ports Built into Air Outlet End Tank (Dual 1/8 NPT Ports Per Cooler)
  • Complete with OEM-Style "Quick Connect" Water Connections and Sensor Ports
  • Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
  • Drop-In Fit
  • Lifetime Warranty
  • Sold As A Complete Set With Left/Right Charge-Air Coolers + Installation Hardware


  • Color: Black
  • Core Color: Raw Aluminum
  • Core Material: Aluminum
  • Core Row Quantity: 1
  • Grade Type: Performance
  • Inlet Fitting Gender: Male
  • Inlet Tank Material: Aluminum
  • Installation Type: Drop-In Fit Installation
  • Mounting Hardware Included: No
  • Outlet Fitting Gender: Male
  • Prop 65 Yes/No: No
  • Title: BMW F9X M5/M8 Twin Charge-Air-Cooler Set
  • Type: Air-to-Water
  • Universal Or Specific Fit: Specific

Other Part Numbers:
CSF Radiators #csf8178

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2018-2022
 BMW M5
2020, 2022-2024
 BMW M8
2021
 BMW M8 Gran Coupe
CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
