The Chase Bays Brake Line Relocation for Chase Bays Single Piston Brake Booster Delete is designed for enthusiasts who want to adapt their Single Piston Brake Booster Delete to their chassis, eliminate engine bay clutter with improved line routing, delete ABS (if applicable), and improve braking performance.

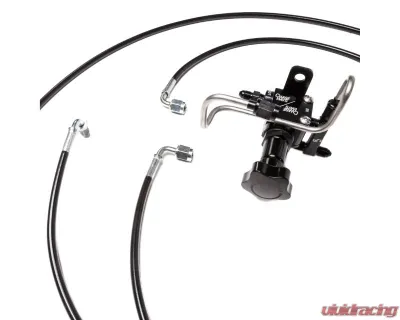

This is the Brake Line Relocation Kit for our Single Piston Brake Booster Delete.
The Single Piston Brake Booster Delete is not included in this purchase.
Don't forget to add the Clutch Feed Adapter for Fluid Feed.

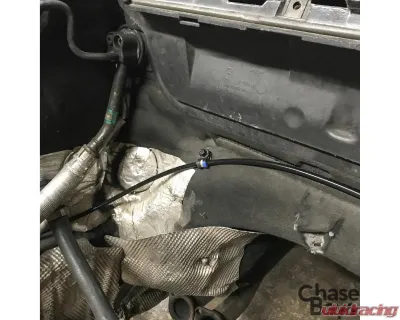

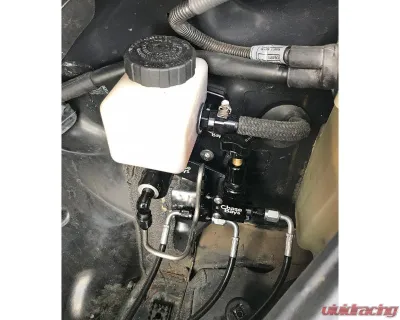

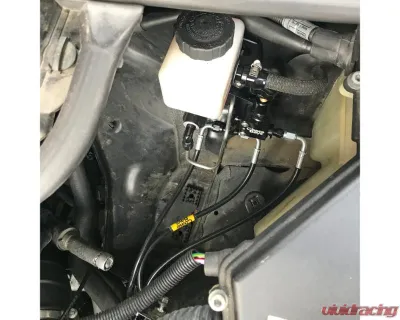

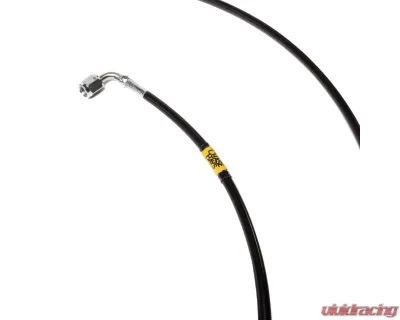

The OEM brake hard lines are relocated and replaced and with -3AN stainless steel braided, Teflon PTFE lined, black PVC coated lines. We have designed the lines to route in the best path possible. Low on the firewall, behind steering column, under frame rail'wever we find is the best look while remaining easy to install. Plus, of course, a safe distance from high heat and/or moving objects. We include Chase Bays Firesleeve on the lines that are near those places of heat for a motorsport ready installation. But always install and secure lines to keep them 4" or more inches away from manifolds and downpipes.
Chase Bays uses only the best components. ALL Hose and Hose Ends are BMRS aka Brown and Miller Racing. This is the best Hose/Hose Ends in the world, the same components seen on NASCAR and Indy Car. All the Fitting Adapters are designed and manufactured by Chase Bays to be chassis specific for perfect leak free installs. We pressure test every line we assemble and guarantee a leak free installation if this product is installed correctly.
The Brake Line Relocation replaces all of the engine bay hard lines up to the lines in the wheel well that connect to caliper and to the OEM rear hard line(s). It does not include the caliper lines. Those are available separately.
The clevis will require modifying. You will cut the factory hole type clevis off the E46 brake booster and weld it onto a provided coupler.
This is the Brake Line Relocation Kit for our Single Piston Brake Booster Delete.
The Single Piston Brake Booster Delete is not included in this purchase.
Don't forget to add the Clutch Feed Adapter for Fluid Feed.
The OEM brake hard lines are relocated and replaced and with -3AN stainless steel braided, Teflon PTFE lined, black PVC coated lines. We have designed the lines to route in the best path possible. Low on the firewall, behind steering column, under frame rail'wever we find is the best look while remaining easy to install. Plus, of course, a safe distance from high heat and/or moving objects. We include Chase Bays Firesleeve on the lines that are near those places of heat for a motorsport ready installation. But always install and secure lines to keep them 4" or more inches away from manifolds and downpipes.
Chase Bays uses only the best components. ALL Hose and Hose Ends are BMRS aka Brown and Miller Racing. This is the best Hose/Hose Ends in the world, the same components seen on NASCAR and Indy Car. All the Fitting Adapters are designed and manufactured by Chase Bays to be chassis specific for perfect leak free installs. We pressure test every line we assemble and guarantee a leak free installation if this product is installed correctly.
The Brake Line Relocation replaces all of the engine bay hard lines up to the lines in the wheel well that connect to caliper and to the OEM rear hard line(s). It does not include the caliper lines. Those are available separately.
The clevis will require modifying. You will cut the factory hole type clevis off the E46 brake booster and weld it onto a provided coupler.
Other Part Numbers:
Chase Bays #chbCB-E46-BBE
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2000-2005 BMW 316i |
316i | 2000-2005 |
|
2001-2005 BMW 316ti |
316ti | 2001-2005 |
|
2000-2005 BMW 318Ci |
318Ci | 2000-2005 |
|
2002-2005 BMW 318d |
318d | 2002-2005 |
|
2000-2005 BMW 318i |
318i | 2000-2005 |
|
2001-2005 BMW 318td |
318td | 2001-2005 |
|
2001-2005 BMW 318ti |
318ti | 2001-2005 |
|
2003-2006 BMW 320Cd |
320Cd | 2003-2006 |
|
2000-2006 BMW 320Ci |
320Ci | 2000-2006 |
|
2000-2005 BMW 320d |
320d | 2000-2005 |
|
2000-2004 BMW 320i |
320i | 2000-2004 |
|
2001-2005 BMW 320td |
320td | 2001-2005 |
|
2000-2003 BMW 323Ci |
323Ci | 2000-2003 |
|
2000-2004 BMW 323i |
323i | 2000-2004 |
|
2000 BMW 323ti |
323ti | 2000 |
|
2001-2006 BMW 325Ci |
325Ci | 2001-2006 |
|
2000-2005 BMW 325i |
325i | 2000-2005 |
|
2001-2006 BMW 325xi |
325xi | 2001-2006 |
|
2000-2002 BMW 328i |
328i | 2000-2002 |
|
2001-2006 BMW 330Ci |
330Ci | 2001-2006 |
|
2000-2005 BMW 330d |
330d | 2000-2005 |
|
2000-2005 BMW 330i |
330i | 2000-2005 |
|
2001-2006 BMW 330xi |
330xi | 2001-2006 |
|
2004-2005 BMW 335d |
335d | 2004-2005 |
|
2001-2006 BMW M3 |
M3 | 2001-2006 |
