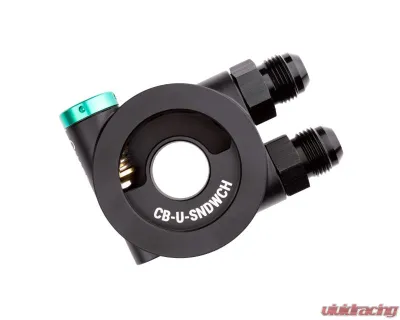

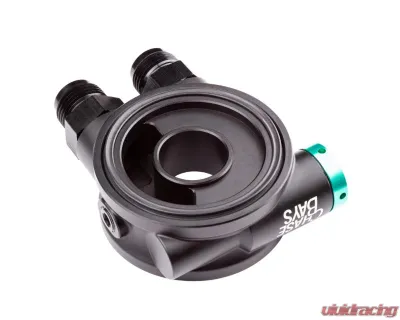

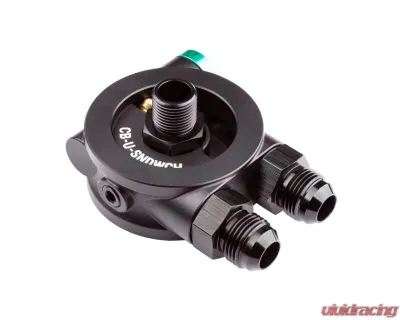

Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH
Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH - Image 7 Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH - Image 2 Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH - Image 3 Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH - Image 4 Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH - Image 5 Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH - Image 6 Chase Bays 3/4-16 Thermostatic Oil Sandwich Plate - CB-U-34SNDWCH - Image 7
The Chase Bays Thermostatic Oil Sandwich Plate was designed to adapt your engine for an external oil cooler in a reliable, lightweight, compact, aesthetically pleasing, and high flow design.

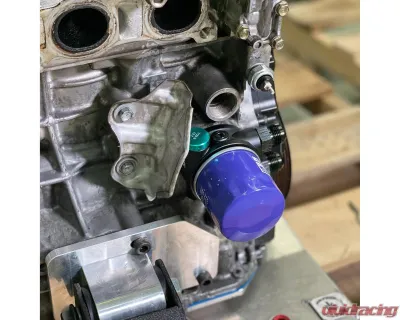

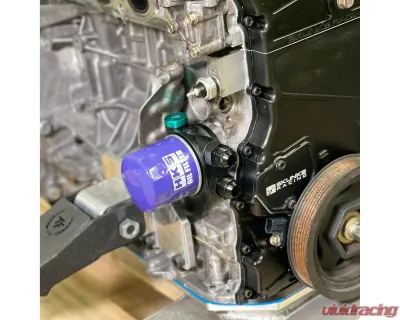

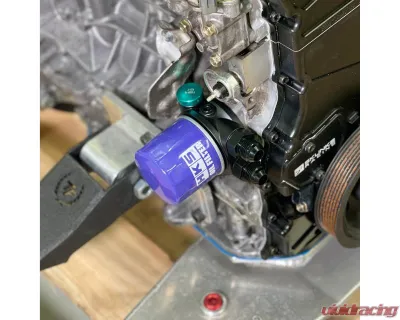

The built-in thermostatic oil valve allows vehicle to warm up to operating temperature before sending oil through to an oil cooler. Without this the vehicle can take 20+ minutes to warm up and that's bad for the engine. Oil Sandwich adapters install between oil filter and oil filter landing for easy install of an oil cooler.

Features:
  • Innovative self-contained 180°F thermostatic oil valve
  • 10AN ORB Ports
  • Very high flow cavities
  • Two 1/8 NPT accessory ports (plugs included)
  • X Profile Buna O-Ring Seal
  • Machined from 6061 Aluminum and bead blasted for smooth finish
  • Anodized UV-proof signature Chase Bays Semi-Gloss black with logo laser etched in the side
  • Torque Specs: 23 ft lbs
  • Oil Filter Sealing Surface Minimum ID: 54mm
  • Oil Filter Sealing Surface Maximum OD: 74mm
Note:
  • There is no in and out for the 10AN Adapters...it is pressurized in one direction so it will flow based off pressure. It does not matter which end goes to the cooler or which side of the cooler, it will push itself through in the only direction it flows.

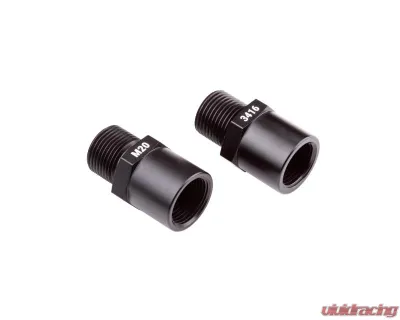

  • If your chassis isn't listed, search your chassis and oil filter thread size to find out– Fits:
    • Honda B, D, H, F, K, J Series - M20x1.5
    • Mazda Miata NA, NB BP - M20x1.5
    • Mazda Miata NC - 3/4-16
    • Nissan S13 SR20DET - 3/4-16
    • Nissan S14 SR20DET - M20x1.5
    • Nissan KA, CA, and RB - 3/4-16
    • Nissan VQ - M20x1.5
    • Subaru Impreza EJ - M20x1.5
    • Subaru FR-S/BRZ/86 FA20 - M20x1.5
    • Toyota 1JZ-GTE, 2JZ-GTE, and 2JZ-GE - 3/4-16
    • Toyota BEAMS - 3/4-16

Other Part Numbers:
Chase Bays #chbCB-U-34SNDWCH
