If you're looking to upgrade your ride's clutch, the Centerforce DYAD DS 10.4" twin disc clutch is a solid choice. It’s designed for those who need serious torque capability, handling anywhere from 500 to 1300 ft/lbs at the crank. What’s cool about this clutch is the patented centrifugal weight system in the pressure plate. It really cranks up the clamp load compared to stock, giving you that extra bite when you need it. Plus, the ball bearing actuated pressure plate makes for a surprisingly light pedal effort—no more wrestling with your clutch pedal.

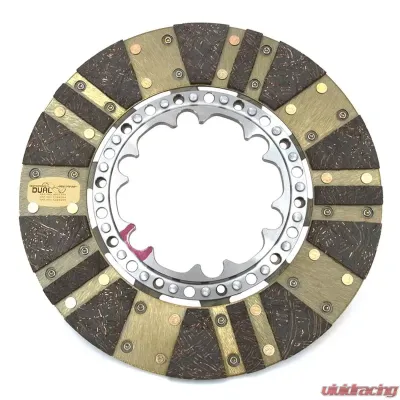

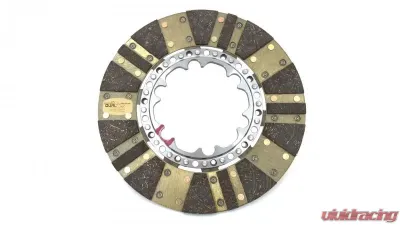

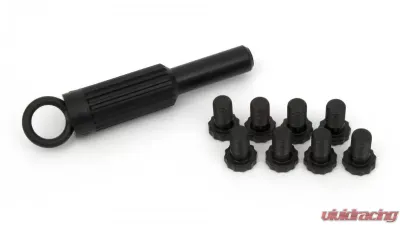

The discs feature organic segmented facings that boost holding capacity without sacrificing drivability. You know that feeling when you’re shifting gears smoothly? That’s thanks to the sprung/dampened drive disc, which helps keep everything nice and smooth. And let's not forget about the lightened billet steel flywheel that comes with it. It reduces inertia, allowing for quicker RPMs—perfect for those who love to feel the engine come alive when you hit the gas. All the components are made right here in the USA, so you know you're getting quality. Plus, they come match balanced and ready to install with the included ARP fasteners.
Features
- California Proposition 65: Just a heads-up, this product can expose you to chemicals known to the State of California to cause cancer. So, wash your hands after installation.
- Clutch Disc Diameter: 10.4 inches
- Counterweight Assist: Yes, it’s got your back.
- Crankshaft Bolt Hole Quantity: 8
- Disc Material: Organic/Carbon composite for that perfect balance.
- Disc Type Sprung Solid: Sprung for smooth engagement.
- Disc Type: Segmented face to maximize grip.
- Flywheel Counter Balance Weight: 0
- Flywheel Crank Bolt Size: 1/2 x 20
- Flywheel Crank Flange Register: 2.160
- Flywheel Deck Height: 2.960
- Input Shaft Diameter: 1-3/16
- Input Spline Quantity: 18
- Material: Billet Steel Flywheel, Nodular Iron Pressure Plate, Segmented Organic Friction
- Ring Gear O.D: 14.568
- Ring Gear Tooth Count: 143
- Title: PN: 413753040 - DYAD DS 10.4, Clutch and Flywheel Kit
- Torque Capacity: 1300 ft/lbs
Notes:
Products Fitment:
Dodge Challenger 1970-1972
Dodge Charger 1966-1972
Dodge Coronet 1965-1972
Plymouth Barracuda 1971-1972
413753040 Centerforce DYAD(R) DS 10.4, Clutch and Flywheel Kit.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1970-1972 Dodge Challenger |
Challenger | 1970-1972 |
1966-1972 Dodge Charger |
Charger | 1966-1972 |
1965-1972 Dodge Coronet |
Coronet | 1965-1972 |
1971-1972 Plymouth Barracuda |
Barracuda | 1971-1972 |
Centerforce is an aftermarket company that was established back in the 1980s. The company specializes in manufacturing performance clutches and pressure plate systems in the automotive industry. It was founded by the industry’s legendary hot rodder, Bill Hays. Bill saw the need for developing non-asbestos friction facing high-performance clutch system that can withstand the abuse of motorsport racing. Today, Centerforce has become synonymous with performance and is being used by multiple racers worldwide.
Created By The BestThe company was able to develop such great products that it received numerous awards, including the SEMA and HotRod Magazine’s Best New Performance Street Award. It also won the PWA’s Manufacturer of the Year Award in 1998. This is a testament to the quality of the parts the company produces.
Continuous GrowingCenterforce has come a long way since it first started in a small speed shop in California. Through the year, it gained a reputation for producing reliable, quality and durable clutch systems which people enjoyed. Today, the company is housed in a 48,000 square foot manufacturing facility creating over 1600 different clutches and pressure plates.
Purchase Centerforce Products At Vivid RacingIf you are in the market for a high-quality clutch system for your vehicle, then Centerforce is the brand for you. They offer high-performance clutches and pressure plates that can be used for racing. They also have kits designed for the street. These kits are designed to perform better than stock but retain the comfort of the factory-installed unit. To know more about Centerforce, visit Vivid Racing and check out their list of products that fit your specific needs.
Your CENTERFORCE® product is covered by the Limited Warranty explained below that gives you specific legal rights. This limited warranty is the only warranty Midway Industries, Inc. (hereafter "Midway" -the distributor/warrantor of these products) makes in connection with your purchase. Midway neither assumes nor authorizes any vendor, retailer or other person or entity to assume for it any other obligation or liability in connection with its products or this Limited Warranty.
What Is Covered?
Subject to the terms, exclusions and limitations herein Midway warrants to the initial retail purchaser ("purchaser") only that when installed and used on purchaser's vehicle according to supplied product installation instructions, OE vehicle installation instructions, and/or warnings. The CENTERFORCE® product shall be free of defects in material and workmanship for 12 Months as measured from the date of initial retail purchase. THE ITEM MUST HAVE BEEN PURCHASED AT OR ABOVE MAP (MINIMUM ADVERTISED PRICE) AND THE PURCHASER MUST BE ABLE TO PROVIDE A COPY OF THE PURCHASE RECEIPT OR COMPLETED WARRANTY CARD & RECEIPT ON FILE WITH CENTERFORCE. This Limited Warranty is for the original purchaser and is non-transferable. ALL OTHER EXPRESS OR IMPLIED WARRANTIES ARE HEREBY DISCLAIMED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Your warrantor for these parts is Midway Industries, Inc., 2266 Crosswind Dr., Prescott, AZ 86301. Midway reserves the right to: (a.) require proof of purchase as a condition of this Limited Warranty-please use warranty registration card, (b.) make future revisions to this product or it's Limited Warranty without obligation to conform existing product or provide purchaser with prior notice.
What Is Not Covered?
Your CENTERFORCE® Limited Warranty does not cover damage or claims to any component, vehicle, facility, downtime, or person other than the CENTERFORCE® product purchased. Your Limited Warranty does not cover damage or claims to any components CENTERFORCE® determines to have been damaged by or subjected to:
- Installation or use not in accordance with CENTERFORCE® instructions or warnings, OEM installation and maintenance instructions, or accepted ASE guidelines.
- Damage in any part attributable to vehicle systems or components (including electronic stability control) or combination with non- CENTERFORCE® products.
- Normal wear and tear/product deterioration.
- Abuse or use in an incorrect application (including slipping due to excessive torque or racing)
- Accidents, theft, vandalism or other negligent or intentional damage.
Remedy Limited to Repair / Replacement.
The exclusive remedy provided for product covered under this Limited Warranty shall be, upon Midway's inspection and option, either repair or replacement (with CENTERFORCE® parts) of the defective part. Any parts repaired or replaced will be considered part of the original product and will not extend the term of Limited Warranty. Customers requesting warranty consideration should first contact Midway customer service (ph. 928/771-8422) to obtain a Returned Merchandise Authorization (RMA) number. All removal, shipping and installation costs are customer's responsibility.
Other Limitations - Exclusion of Damages - Your Rights Under State Law
In consideration of the purchase price paid, neither Midway nor any independent distributor are responsible for any loss of use or time, rental costs, or for any incidental, consequential, punitive or other damages (whether arising in tort, contract or otherwise) you may have or incur in connection with your vehicle, or your CENTERFORCE® product. Your exclusive remedy hereunder is at Midway's option repair or replacement as described above.
This Limited Warranty gives you specific rights. You may also have other rights that vary from state to state. For example, while all implied warranties are disclaimed herein, any implied warranty required by law is limited to the duration and other enforceable terms of Limited Warranty described above. Some states do not allow limitations of how long an implied warranty lasts and /or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations and exclusions herein may not apply to you.
