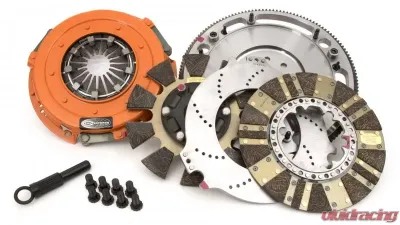

Centerforce DYAD(R) DS 10.4" Clutch and Flywheel Kit (PN: 413693040)
The Centerforce DYAD(R) DS 10.4" Clutch and Flywheel Kit is engineered specifically for high-performance applications, providing a robust solution for the Plymouth Barracuda models from 1964 to 1969 equipped with a 7.0L V8 manual transmission. This twin-disc clutch system is designed to handle torque levels ranging from 500 to 1300 ft/lbs at the crank, making it an ideal choice for those looking to enhance their vehicle's performance without compromising drivability.
Key Features
- Clutch Disc Diameter: 10.4 inches
- Torque Capacity: Up to 1300 ft/lbs

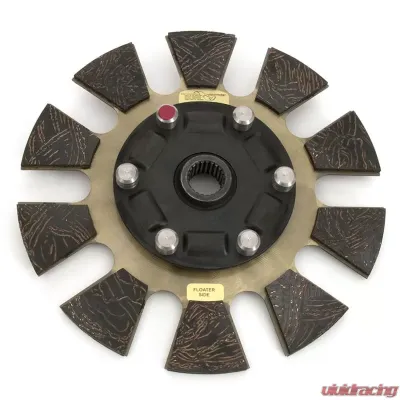

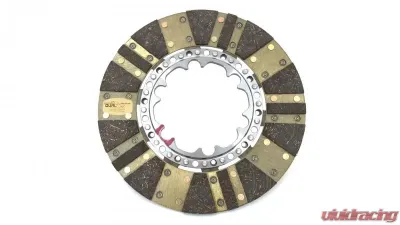

- Disc Material: Organic/Carbon composite for superior grip
- Disc Type: Segmented face with a sprung design for smooth engagement
- Pressure Plate: Features a patented centrifugal weight system for enhanced clamp load

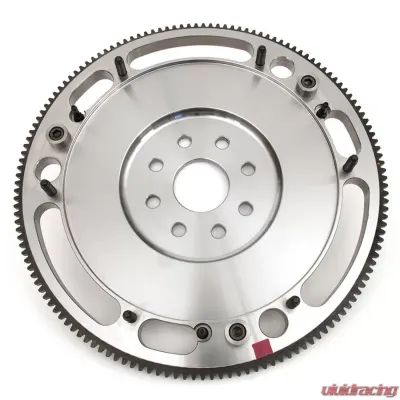

- Flywheel Material: Constructed from lightened billet steel for low inertia, resulting in quicker RPMs
- Input Shaft Diameter: 1 inch with a 23-spline count
- Crankshaft Bolt Hole Quantity: 8, compatible with Hemi and Wedge engines
- Assembly: Components are precision machined and assembled in the USA
- Included Fasteners: Comes with ARP fasteners for easy installation
Installation Notes
This kit is designed for an 8-bolt crank configuration, and it locates on the crank lip rather than the flange OD, ensuring a secure fit. Make sure to follow all installation guidelines to maximize performance and longevity.
Safety Information
California Proposition 65 Warning: This product can expose you to chemicals, including Nickel compounds and dusts, known to the State of California to cause cancer. It is advisable to wash hands following installation.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1964-1969 Plymouth Barracuda |
Barracuda | 1964-1969 |
Centerforce is an aftermarket company that was established back in the 1980s. The company specializes in manufacturing performance clutches and pressure plate systems in the automotive industry. It was founded by the industry’s legendary hot rodder, Bill Hays. Bill saw the need for developing non-asbestos friction facing high-performance clutch system that can withstand the abuse of motorsport racing. Today, Centerforce has become synonymous with performance and is being used by multiple racers worldwide.
Created By The BestThe company was able to develop such great products that it received numerous awards, including the SEMA and HotRod Magazine’s Best New Performance Street Award. It also won the PWA’s Manufacturer of the Year Award in 1998. This is a testament to the quality of the parts the company produces.
Continuous GrowingCenterforce has come a long way since it first started in a small speed shop in California. Through the year, it gained a reputation for producing reliable, quality and durable clutch systems which people enjoyed. Today, the company is housed in a 48,000 square foot manufacturing facility creating over 1600 different clutches and pressure plates.
Purchase Centerforce Products At Vivid RacingIf you are in the market for a high-quality clutch system for your vehicle, then Centerforce is the brand for you. They offer high-performance clutches and pressure plates that can be used for racing. They also have kits designed for the street. These kits are designed to perform better than stock but retain the comfort of the factory-installed unit. To know more about Centerforce, visit Vivid Racing and check out their list of products that fit your specific needs.
Your CENTERFORCE® product is covered by the Limited Warranty explained below that gives you specific legal rights. This limited warranty is the only warranty Midway Industries, Inc. (hereafter "Midway" -the distributor/warrantor of these products) makes in connection with your purchase. Midway neither assumes nor authorizes any vendor, retailer or other person or entity to assume for it any other obligation or liability in connection with its products or this Limited Warranty.
What Is Covered?
Subject to the terms, exclusions and limitations herein Midway warrants to the initial retail purchaser ("purchaser") only that when installed and used on purchaser's vehicle according to supplied product installation instructions, OE vehicle installation instructions, and/or warnings. The CENTERFORCE® product shall be free of defects in material and workmanship for 12 Months as measured from the date of initial retail purchase. THE ITEM MUST HAVE BEEN PURCHASED AT OR ABOVE MAP (MINIMUM ADVERTISED PRICE) AND THE PURCHASER MUST BE ABLE TO PROVIDE A COPY OF THE PURCHASE RECEIPT OR COMPLETED WARRANTY CARD & RECEIPT ON FILE WITH CENTERFORCE. This Limited Warranty is for the original purchaser and is non-transferable. ALL OTHER EXPRESS OR IMPLIED WARRANTIES ARE HEREBY DISCLAIMED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Your warrantor for these parts is Midway Industries, Inc., 2266 Crosswind Dr., Prescott, AZ 86301. Midway reserves the right to: (a.) require proof of purchase as a condition of this Limited Warranty-please use warranty registration card, (b.) make future revisions to this product or it's Limited Warranty without obligation to conform existing product or provide purchaser with prior notice.
What Is Not Covered?
Your CENTERFORCE® Limited Warranty does not cover damage or claims to any component, vehicle, facility, downtime, or person other than the CENTERFORCE® product purchased. Your Limited Warranty does not cover damage or claims to any components CENTERFORCE® determines to have been damaged by or subjected to:
- Installation or use not in accordance with CENTERFORCE® instructions or warnings, OEM installation and maintenance instructions, or accepted ASE guidelines.
- Damage in any part attributable to vehicle systems or components (including electronic stability control) or combination with non- CENTERFORCE® products.
- Normal wear and tear/product deterioration.
- Abuse or use in an incorrect application (including slipping due to excessive torque or racing)
- Accidents, theft, vandalism or other negligent or intentional damage.
Remedy Limited to Repair / Replacement.
The exclusive remedy provided for product covered under this Limited Warranty shall be, upon Midway's inspection and option, either repair or replacement (with CENTERFORCE® parts) of the defective part. Any parts repaired or replaced will be considered part of the original product and will not extend the term of Limited Warranty. Customers requesting warranty consideration should first contact Midway customer service (ph. 928/771-8422) to obtain a Returned Merchandise Authorization (RMA) number. All removal, shipping and installation costs are customer's responsibility.
Other Limitations - Exclusion of Damages - Your Rights Under State Law
In consideration of the purchase price paid, neither Midway nor any independent distributor are responsible for any loss of use or time, rental costs, or for any incidental, consequential, punitive or other damages (whether arising in tort, contract or otherwise) you may have or incur in connection with your vehicle, or your CENTERFORCE® product. Your exclusive remedy hereunder is at Midway's option repair or replacement as described above.
This Limited Warranty gives you specific rights. You may also have other rights that vary from state to state. For example, while all implied warranties are disclaimed herein, any implied warranty required by law is limited to the duration and other enforceable terms of Limited Warranty described above. Some states do not allow limitations of how long an implied warranty lasts and /or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations and exclusions herein may not apply to you.
