Centerforce DYAD XDS 10.4 Clutch and Flywheel Kit for Dodge Viper 1992-2002 8.0L V10 Manual
$1899.95
Free Shipping

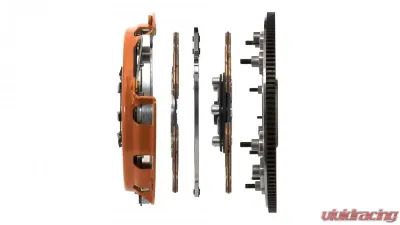

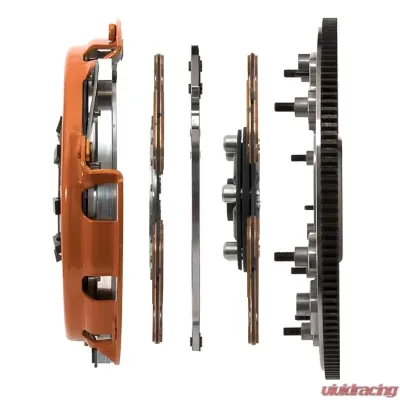

Centerforce DYAD(R) XDS 10.4" Clutch and Flywheel Kit - PN: 427613092

The Centerforce DYAD(R) XDS 10.4" clutch and flywheel kit is engineered for high-performance applications, specifically designed for the Dodge Viper from 1992 to 2002, featuring the robust 8.0L V10 engine. This multi-disc clutch system is capable of handling torque levels between 700 to 1600 ft/lbs, making it an ideal choice for enthusiasts looking to maximize power transfer in a manual transmission setup.

Design and Construction

This clutch system utilizes a patented centrifugal weight system that enhances clamp load compared to stock setups, ensuring reliable engagement under high-stress conditions. The pressure plate is actuated by a ball bearing design, which significantly reduces pedal effort, allowing for a more comfortable driving experience even during aggressive driving.

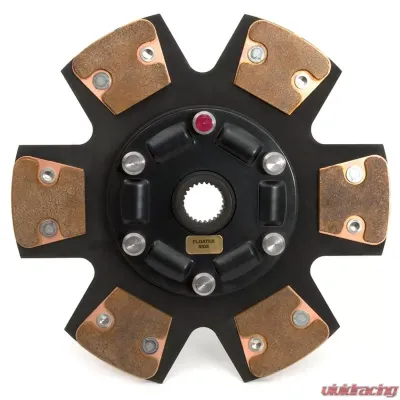

Clutch Discs

The discs are constructed from sintered metallic material and feature a paddle/button style friction design, providing exceptional holding capacity and durability. The sprung disc type helps to absorb shock during engagement, further improving drivability.

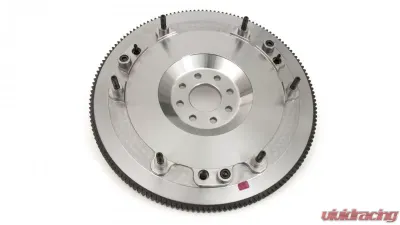

Flywheel Specifications

Included in this kit is a lightweight billet steel flywheel that reduces inertia, facilitating quicker RPMs for improved throttle response. The flywheel specifications are as follows:

  • Flywheel Crank Bolt Size: 7/16 x 20
  • Flywheel Crank Flange Register: 2.159 inches
  • Flywheel Deck Height: 3.550 inches
  • Ring Gear O.D: 15.625 inches
  • Ring Gear Tooth Count: 152

Installation Notes

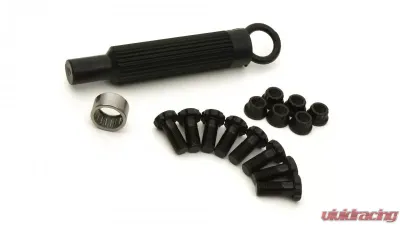

This clutch kit is designed for straightforward installation, coming match balanced with ARP fasteners included for secure mounting. However, due to its race-inspired nature, users may experience some floater noise or chatter during operation, which is typical for high-performance clutches.

Specifications

  • Clutch Disc Diameter: 10.4 inches
  • Input Shaft Diameter: 1-1/8 inches
  • Input Spline Quantity: 26
  • Out of Package Weight: 55.80 lbs
  • Torque Capacity: 1600 ft/lbs

Important Information

California Proposition 65 Warning: This product can expose you to chemicals including Nickel compounds and dusts, known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. Wash hands following installation.

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1992-2002
Dodge Viper

Centerforce Banner

Who is Centerforce?

Centerforce is an aftermarket company that was established back in the 1980s. The company specializes in manufacturing performance clutches and pressure plate systems in the automotive industry. It was founded by the industry’s legendary hot rodder, Bill Hays. Bill saw the need for developing non-asbestos friction facing high-performance clutch system that can withstand the abuse of motorsport racing. Today, Centerforce has become synonymous with performance and is being used by multiple racers worldwide.

Created By The Best

The company was able to develop such great products that it received numerous awards, including the SEMA and HotRod Magazine’s Best New Performance Street Award. It also won the PWA’s Manufacturer of the Year Award in 1998. This is a testament to the quality of the parts the company produces.

Continuous Growing

Centerforce has come a long way since it first started in a small speed shop in California. Through the year,  it gained a reputation for producing reliable, quality and durable clutch systems which people enjoyed. Today, the company is housed in a 48,000 square foot manufacturing facility creating over 1600 different clutches and pressure plates.

Purchase Centerforce Products At Vivid Racing

If you are in the market for a high-quality clutch system for your vehicle, then Centerforce is the brand for you. They offer high-performance clutches and pressure plates that can be used for racing. They also have kits designed for the street. These kits are designed to perform better than stock but retain the comfort of the factory-installed unit. To know more about Centerforce, visit Vivid Racing and check out their list of products that fit your specific needs.







CENTERFORCE® LIMITED WARRANTY

Your CENTERFORCE® product is covered by the Limited Warranty explained below that gives you specific legal rights. This limited warranty is the only warranty Midway Industries, Inc. (hereafter "Midway" -the distributor/warrantor of these products) makes in connection with your purchase. Midway neither assumes nor authorizes any vendor, retailer or other person or entity to assume for it any other obligation or liability in connection with its products or this Limited Warranty.

What Is Covered?

Subject to the terms, exclusions and limitations herein Midway warrants to the initial retail purchaser ("purchaser") only that when installed and used on purchaser's vehicle according to supplied product installation instructions, OE vehicle installation instructions, and/or warnings. The CENTERFORCE® product shall be free of defects in material and workmanship for 12 Months as measured from the date of initial retail purchase. THE ITEM MUST HAVE BEEN PURCHASED AT OR ABOVE MAP (MINIMUM ADVERTISED PRICE) AND THE PURCHASER MUST BE ABLE TO PROVIDE A COPY OF THE PURCHASE RECEIPT OR COMPLETED WARRANTY CARD & RECEIPT ON FILE WITH CENTERFORCE. This Limited Warranty is for the original purchaser and is non-transferable. ALL OTHER EXPRESS OR IMPLIED WARRANTIES ARE HEREBY DISCLAIMED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Your warrantor for these parts is Midway Industries, Inc., 2266 Crosswind Dr., Prescott, AZ 86301. Midway reserves the right to: (a.) require proof of purchase as a condition of this Limited Warranty-please use warranty registration card, (b.) make future revisions to this product or it's Limited Warranty without obligation to conform existing product or provide purchaser with prior notice.

What Is Not Covered?

Your CENTERFORCE® Limited Warranty does not cover damage or claims to any component, vehicle, facility, downtime, or person other than the CENTERFORCE® product purchased. Your Limited Warranty does not cover damage or claims to any components CENTERFORCE® determines to have been damaged by or subjected to:

  • Installation or use not in accordance with CENTERFORCE® instructions or warnings, OEM installation and maintenance instructions, or accepted ASE guidelines.
  • Damage in any part attributable to vehicle systems or components (including electronic stability control) or combination with non- CENTERFORCE® products.
  • Normal wear and tear/product deterioration.
  • Abuse or use in an incorrect application (including slipping due to excessive torque or racing)
  • Accidents, theft, vandalism or other negligent or intentional damage.

Remedy Limited to Repair / Replacement.

The exclusive remedy provided for product covered under this Limited Warranty shall be, upon Midway's inspection and option, either repair or replacement (with CENTERFORCE® parts) of the defective part. Any parts repaired or replaced will be considered part of the original product and will not extend the term of Limited Warranty. Customers requesting warranty consideration should first contact Midway customer service (ph. 928/771-8422) to obtain a Returned Merchandise Authorization (RMA) number. All removal, shipping and installation costs are customer's responsibility.

Other Limitations - Exclusion of Damages - Your Rights Under State Law

In consideration of the purchase price paid, neither Midway nor any independent distributor are responsible for any loss of use or time, rental costs, or for any incidental, consequential, punitive or other damages (whether arising in tort, contract or otherwise) you may have or incur in connection with your vehicle, or your CENTERFORCE® product. Your exclusive remedy hereunder is at Midway's option repair or replacement as described above.

This Limited Warranty gives you specific rights. You may also have other rights that vary from state to state. For example, while all implied warranties are disclaimed herein, any implied warranty required by law is limited to the duration and other enforceable terms of Limited Warranty described above. Some states do not allow limitations of how long an implied warranty lasts and /or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations and exclusions herein may not apply to you.
