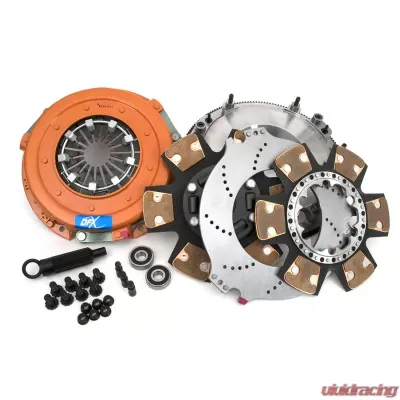

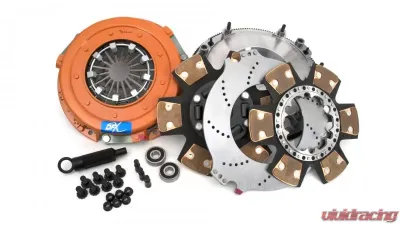

Centerforce DYAD(R) XDS 10.4" Clutch and Flywheel Kit - Part Number: 415614877
The Centerforce DYAD(R) XDS 10.4" twin disc clutch is engineered for performance enthusiasts who demand exceptional torque capacity. With a robust range of 700 to 1600 ft/lbs at the crank, this clutch is designed to handle the rigors of high-performance driving. Customers have noted a significant improvement in their vehicle's responsiveness and power delivery, making it a popular choice among those who take their cars to the track.
Key Features
- Clutch Disc Diameter: 10.4 inches
- Counterweight Assist: Yes, ensuring superior clamp load over stock options
- Disc Material: Cerametallic for enhanced durability

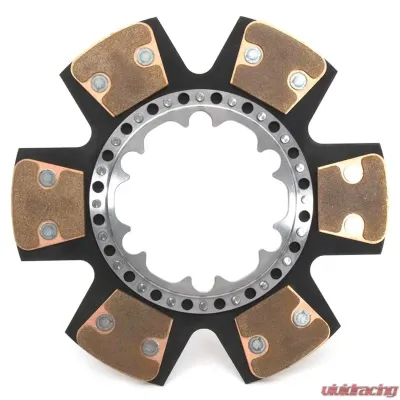

- Disc Type: 6-Paddle design for improved holding capacity

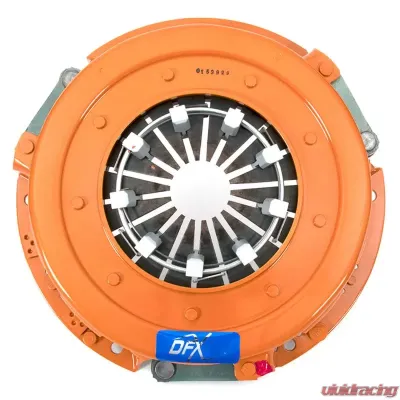

- Light Pedal Effort: Thanks to the patented ball-bearing actuated pressure plate

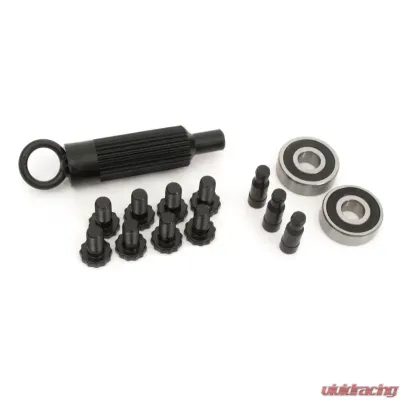

- Match Balanced: Ready for installation with included ARP fasteners
- Out of Package Weight: 53.20 lbs, providing a solid feel during operation
Benefits
This clutch kit not only offers a light pedal feel but also ensures smooth engagement, making it user-friendly for both street and track applications. The lightweight billet steel flywheel contributes to quicker RPMs, enhancing your vehicle's overall performance. However, be aware that due to its aggressive design, some users have reported experiencing floater noise or chatter during operation, which is typical for high-performance clutches.
Customer Feedback
Many users have praised the DYAD XDS for its reliability and performance. One customer shared, "After installing the Centerforce clutch, I noticed a huge difference in how my Camaro handles. It grips hard and shifts smoothly, even during aggressive driving." Another remarked, "It took a bit of getting used to the chatter, but the performance gains are worth it!"
Technical Specifications
- Input Shaft Diameter: 1-1/8 inches
- Input Spline Quantity: 26
- Flywheel Crank Bolt Size: 11mm
- Ring Gear Tooth Count: 168
- Material: Billet Steel Flywheel, Nodular Iron Pressure Plate, Cerametallic Button Style Friction
Fitment
This clutch kit is compatible with the following vehicles:
- Chevrolet Camaro 2016-2018
- Chevrolet Camaro ZL1 2017-2018
- Chevrolet Corvette Grand Sport 2017-2018
- Chevrolet Corvette Stingray 2014-2018
- Chevrolet Corvette Z06 2015-2018
Upgrade your vehicle's performance with the Centerforce DYAD(R) XDS 10.4" Clutch and Flywheel Kit. Experience the difference in power and control today!
