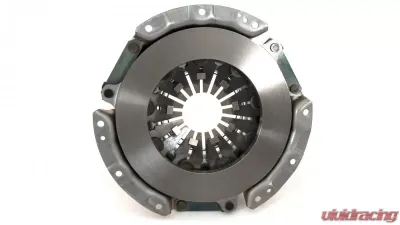

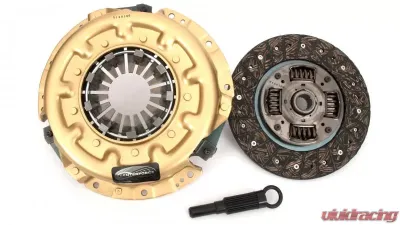

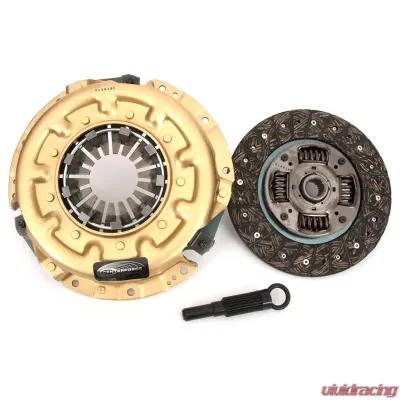

Centerforce I Clutch Pressure Plate and Disc Set - PN: CF007534

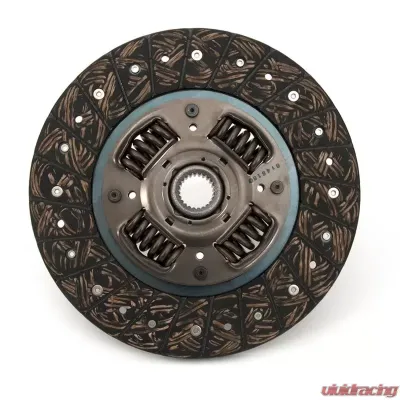

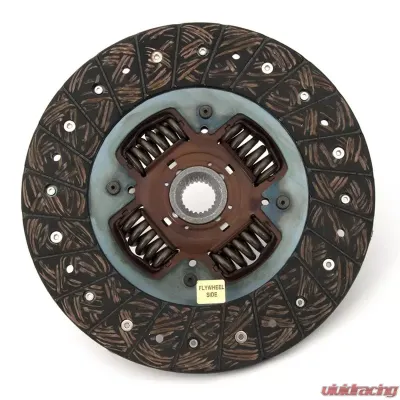

The Centerforce I Clutch Series is engineered for those seeking a reliable performance upgrade without compromising drivability. This clutch set features a full-facing disc made from premium organic friction material, ensuring effective engagement and smooth operation. Designed primarily as a high-quality stock replacement, it accommodates stock engines and those with mild power enhancements from bolt-on modifications.
This clutch system incorporates Centerforce's innovative centrifugal weights, enhancing clutch engagement as RPMs increase, which is particularly beneficial for spirited driving. The pressure plate and disc are sold separately for select applications, allowing for tailored configurations based on your specific setup.
Key Specifications
- Clutch Disc Diameter: 240 mm
- Counterweight Assist: Yes
- Disc Material: Organic
- Disc Type: Sprung Solid (Full Face)
- Flywheel Step: 0.004 inches
- Input Shaft Diameter: 1 inch
- Input Spline Quantity: 24
- Material: Cast Iron Pressure Plate with Organic Friction
- Torque Capacity: 322 ft-lbs
Important Notes
California Proposition 65: This product can expose you to chemicals including Nickel compounds and dusts, known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov. It is advisable to wash hands after installation.
Fitment
The Centerforce I Clutch Pressure Plate and Disc Set (PN: CF007534) is confirmed to fit the following Nissan models:
- Nissan 200SX S12 (1987-1988)
- Nissan 280ZX (1981-1983)
- Nissan 300ZX (1984-1996)
- Nissan D21 (1986-1994)
- Nissan Frontier (1998-2004)
- Nissan Pickup (1995-1997)
- Nissan Xterra (2000-2004)
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1987-1988 Nissan 200SX S12 |
200SX S12 | 1987-1988 |
1981-1983 Nissan 280ZX |
280ZX | 1981-1983 |
1984-1996 Nissan 300ZX |
300ZX | 1984-1996 |
1986-1994 Nissan D21 |
D21 | 1986-1994 |
1998-2004 Nissan Frontier |
Frontier | 1998-2004 |
1995-1997 Nissan Pickup |
Pickup | 1995-1997 |
2000-2004 Nissan Xterra |
Xterra | 2000-2004 |
Centerforce is an aftermarket company that was established back in the 1980s. The company specializes in manufacturing performance clutches and pressure plate systems in the automotive industry. It was founded by the industry’s legendary hot rodder, Bill Hays. Bill saw the need for developing non-asbestos friction facing high-performance clutch system that can withstand the abuse of motorsport racing. Today, Centerforce has become synonymous with performance and is being used by multiple racers worldwide.
Created By The BestThe company was able to develop such great products that it received numerous awards, including the SEMA and HotRod Magazine’s Best New Performance Street Award. It also won the PWA’s Manufacturer of the Year Award in 1998. This is a testament to the quality of the parts the company produces.
Continuous GrowingCenterforce has come a long way since it first started in a small speed shop in California. Through the year, it gained a reputation for producing reliable, quality and durable clutch systems which people enjoyed. Today, the company is housed in a 48,000 square foot manufacturing facility creating over 1600 different clutches and pressure plates.
Purchase Centerforce Products At Vivid RacingIf you are in the market for a high-quality clutch system for your vehicle, then Centerforce is the brand for you. They offer high-performance clutches and pressure plates that can be used for racing. They also have kits designed for the street. These kits are designed to perform better than stock but retain the comfort of the factory-installed unit. To know more about Centerforce, visit Vivid Racing and check out their list of products that fit your specific needs.
Your CENTERFORCE® product is covered by the Limited Warranty explained below that gives you specific legal rights. This limited warranty is the only warranty Midway Industries, Inc. (hereafter "Midway" -the distributor/warrantor of these products) makes in connection with your purchase. Midway neither assumes nor authorizes any vendor, retailer or other person or entity to assume for it any other obligation or liability in connection with its products or this Limited Warranty.
What Is Covered?
Subject to the terms, exclusions and limitations herein Midway warrants to the initial retail purchaser ("purchaser") only that when installed and used on purchaser's vehicle according to supplied product installation instructions, OE vehicle installation instructions, and/or warnings. The CENTERFORCE® product shall be free of defects in material and workmanship for 12 Months as measured from the date of initial retail purchase. THE ITEM MUST HAVE BEEN PURCHASED AT OR ABOVE MAP (MINIMUM ADVERTISED PRICE) AND THE PURCHASER MUST BE ABLE TO PROVIDE A COPY OF THE PURCHASE RECEIPT OR COMPLETED WARRANTY CARD & RECEIPT ON FILE WITH CENTERFORCE. This Limited Warranty is for the original purchaser and is non-transferable. ALL OTHER EXPRESS OR IMPLIED WARRANTIES ARE HEREBY DISCLAIMED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Your warrantor for these parts is Midway Industries, Inc., 2266 Crosswind Dr., Prescott, AZ 86301. Midway reserves the right to: (a.) require proof of purchase as a condition of this Limited Warranty-please use warranty registration card, (b.) make future revisions to this product or it's Limited Warranty without obligation to conform existing product or provide purchaser with prior notice.
What Is Not Covered?
Your CENTERFORCE® Limited Warranty does not cover damage or claims to any component, vehicle, facility, downtime, or person other than the CENTERFORCE® product purchased. Your Limited Warranty does not cover damage or claims to any components CENTERFORCE® determines to have been damaged by or subjected to:
- Installation or use not in accordance with CENTERFORCE® instructions or warnings, OEM installation and maintenance instructions, or accepted ASE guidelines.
- Damage in any part attributable to vehicle systems or components (including electronic stability control) or combination with non- CENTERFORCE® products.
- Normal wear and tear/product deterioration.
- Abuse or use in an incorrect application (including slipping due to excessive torque or racing)
- Accidents, theft, vandalism or other negligent or intentional damage.
Remedy Limited to Repair / Replacement.
The exclusive remedy provided for product covered under this Limited Warranty shall be, upon Midway's inspection and option, either repair or replacement (with CENTERFORCE® parts) of the defective part. Any parts repaired or replaced will be considered part of the original product and will not extend the term of Limited Warranty. Customers requesting warranty consideration should first contact Midway customer service (ph. 928/771-8422) to obtain a Returned Merchandise Authorization (RMA) number. All removal, shipping and installation costs are customer's responsibility.
Other Limitations - Exclusion of Damages - Your Rights Under State Law
In consideration of the purchase price paid, neither Midway nor any independent distributor are responsible for any loss of use or time, rental costs, or for any incidental, consequential, punitive or other damages (whether arising in tort, contract or otherwise) you may have or incur in connection with your vehicle, or your CENTERFORCE® product. Your exclusive remedy hereunder is at Midway's option repair or replacement as described above.
This Limited Warranty gives you specific rights. You may also have other rights that vary from state to state. For example, while all implied warranties are disclaimed herein, any implied warranty required by law is limited to the duration and other enforceable terms of Limited Warranty described above. Some states do not allow limitations of how long an implied warranty lasts and /or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations and exclusions herein may not apply to you.
