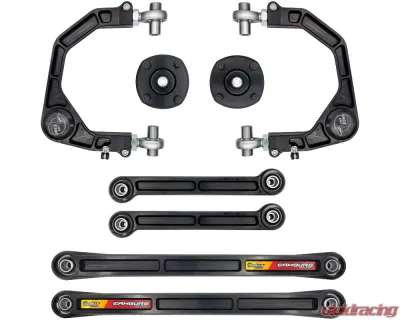

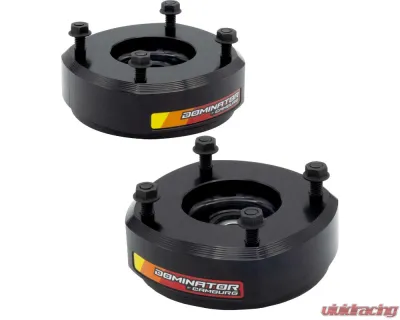

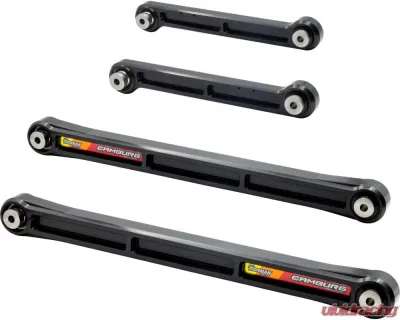

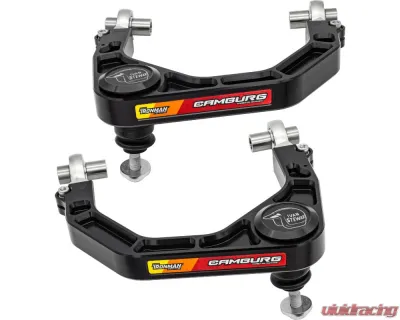

We've teamed up with the G.O.A.T. of the off-road world Ivan "Ironman" Stewart and MagnaFlow to take your 2024-2025 Toyota Tacoma to the next level with our limited-edition suspension and exhaust system. With the 4th generation Tacoma being all new from the ground up, we looked at its strengths and weaknesses to develop a suspension system that enhances on and off-road capabilities while improving handling all-around with stronger and higher quality components. We started with our Dominator Preload System that utilizes the OEM shocks to lift the front end 2.5" to level out the stance, increase up travel for better bottoming resistance and give you the ability to run a taller tire for increased ground clearance. We combine these with our KINETIK series billet aluminum upper control arms to correct and improve geometry for better handling both on and off-road. These utilize our all new heavy-duty, high-angle, all-weather sealed Camburg X-Joint XL for minimal maintenance. In the rear, our KINETIK series billet aluminum upper and lower trailing arms allow for maximum wheel travel and articulation with zero binding. Being limited-edition, we anodized everything gloss black with our Ivan "Ironman" Stewart Toyota themed badging. Shifting from the suspension, we include MagnaFlow's Overland Series performance exhaust system. Tuned specifically for the 2.4L Tacoma, this high flow, high clearance stainless steel exhaust with No Drone Technology increases horsepower and torque with the added ground clearance and strength needed when off-roading. Also included is a clamp-on tailpipe sub-assembly with a single driver side rear exit and black chrome 4" tip with our Ivan "Ironman" Stewart Toyota themed badging. We also include a custom Ivan "Ironman" Stewart Camburg + MagnaFlow hat along with bedside decals. With one kit, you can drastically improve your Tacoma's suspension and performance capabilities.
Specifications:
Fitment:
Specifications:
- Bushings Included: Yes
- Coil Spring Spacer Color: Black
- Coil Spring Spacer Grade Type: Performance
- Coil Spring Spacer Height: 2.5
- Coil Spring Spacer Material: 6061-T6 Billet Aluminum
- Coil Spring Spacer Universal or Specific Fit: Specific Fit
- Coils Quantity Front: 0
- Coils Quantity Rear: 0
- Control Arm Adjustable: Yes
- Control Arm Attachments Included: No
- Control Arm Ball Joint Cover Included: Yes
- Control Arm Ball Joint Included: Yes
- Control Arm Bushings Included: Yes
- Control Arm Color: Black
- Control Arm Control Arm Construction: CNC Machined
- Control Arm Control Arm Material: 6061-T6 Billet Aluminum
- Control Arm Grade Type: Performance
- Control Arm Grease Fitting Included: No
- Control Arm Joint Type: X-Joint XL
- Control Arm Maximum Lift: 2.5
- Control Arm Mounting Hardware Included: No

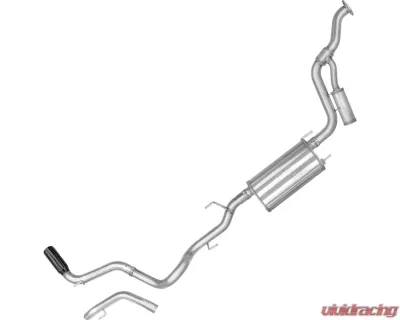

- Exhaust Clamping Type: Band Clamp
- Exhaust Clamps Included: Yes
- Exhaust Exit Style: Multiple Exit Options
- Exhaust Gasket Or Seal Included: No
- Exhaust Hangers Included: Yes
- Exhaust Inlet Type: Bolt-On
- Exhaust Main Piping Diameter: 3
- Exhaust Mounting Bracket Included: No
- Exhaust Muffler (Front) Body Height: 4
- Exhaust Muffler (Front) Body Length: 11
- Exhaust Muffler (Front) Body Width: 4
- Exhaust Muffler (Front) Type: Tuned Chamber
- Exhaust Muffler (Rear) Body Height: 5
- Exhaust Muffler (Rear) Body Length: 22
- Exhaust Muffler (Rear) Body Width: 11
- Exhaust Muffler (Rear) Type: Straight-Through
- Exhaust Muffler Body Material: Stainless Steel
- Exhaust Muffler Finish: Brushed
- Exhaust Muffler Quantity: 2
- Exhaust Pipe Material: Stainless Steel
- Exhaust Series: Overland
- Exhaust Tip Connection: Welded-On
- Exhaust Tip Cut: Angle Cut
- Exhaust Tip Diameter: 4
- Exhaust Tip Edge: Folded Edge
- Exhaust Tip Finish: Black Chrome
- Exhaust Tip Intercooled: No
- Exhaust Tip Length: 10.5
- Exhaust Tip Material: Stainless Steel
- Exhaust Tip Quantity: 1
- Exhaust Tip Resonated: No
- Exhaust Tip Shape: Round
- Exhaust Tip Wall: Double Wall
- Exhaust Type: Cat-Back
- Exhaust Valve Included: No
- Grade Type: Performance
- Hardware Included: Yes
- Maximum Lift: 2.5
- Prop 65 Y/N: No
- Shocks Included: No
- Trailing Arm Color: Black
- Trailing Arm Finish: Black
- Trailing Arm Grade Type: Performance
- Trailing Arm Material: 6061-T6 Billet Aluminum
- Trailing Arm Mounting Hardware Included: No
- Exhaust System: 1
- Upper Control Arms: 2
- Upper Trailing Arms: 2
- Preload Leveling Spacers: 2
- Lower Trailing Arms: 2
- Recommended Tire Size: 285/70R/17
- Track Width Increase: Stock
- Recommended Wheel Size: 17-18 in.
- Recommended Backspacing: 5.75 in.
- Maximum Backspacing: 6 in.
Fitment:
- Toyota Tacoma Limited 2024-2025
- Toyota Tacoma TRD Off-Road 2024-2025
- Toyota Tacoma TRD Sport 2024-2025
- Toyota Tacoma SR5 2024
