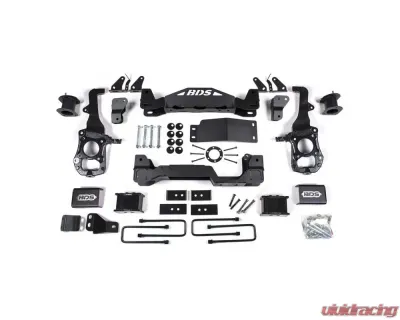

BDS Suspension 2021-2023 Ford F150 w/ CCD 4wd 6" Suspension Lift Kit 5" Rear Ford F-150 2021-2023 - BDS1961H
BDS steps up the performance and capability of the 2021 Ford F150 trucks factory equipped with CCD (Continuously Controlled Damping) with a 6-inch suspension lift kit. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with shock relocation brackets to maintain the factory CCD shocks. BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features:
  • Adjustable Damping: No
  • Adjustable: No
  • Dust Boot Included: No
  • Front Lift Height: 6
  • Front Lift Method: Cross Member
  • Gas Charged: No
  • Greaseable: No
  • Installation Difficulty: difficult
  • Installation Time: 8-10 Hrs
  • Mounting Hardware Included: No
  • Nuts Included: No
  • Pvg Addon Data: BDS123261-BDS123262
  • Pvg Product Status: Active
  • Rear Lift Height: 5
  • Rear Lift Method: Blocks
  • Shocks Included: No
  • Sleeves Included: No
  • 6 Inch Lift Kit - Ford F150 (21-23) 4WD - CCD Equipped
  • Zinc Coated: No
Notes:
  • High Clearance Crossmemebers
  • Heavy Duty Steering Knuckles
