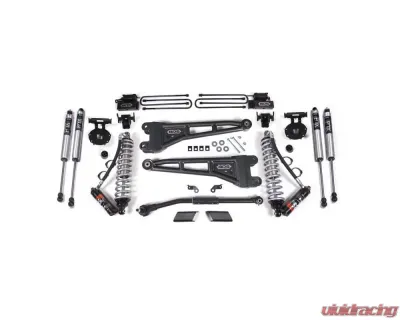

BDS Suspension 2020-2022 Ford F450 4wd 3" Radius Arm Suspension Lift Kit - BDS1915FPE
Build the ultimate Ford F450 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coil-over shocks from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks heavy duty replacement radius arms high strength 1-3/8 inch solid steel track bar for steering correction sway bar relocation brake line brackets and secondary FOX 2.0 shocks. In the rear this kit utilizes a high-strength fabricated lift block longer u-bolts and a matching set of FOX 2.0 Performance shocks. FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency. In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation. Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features:
  • Adjustable Damping: No
  • Adjustable: No
  • Dust Boot Included: No
  • Front Lift Height: 2_5
  • Front Lift Method: Coil Over
  • Gas Charged: No
  • Greaseable: No
  • Installation Difficulty: difficult
  • Installation Time: 11 Hrs
  • Mounting Hardware Included: No
  • Nuts Included: No
  • Pvg Product Status: Active
  • Rear Lift Height: 1
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Sleeves Included: No
  • 2.5 Inch Lift Kit w/ Radius Arm - FOX 2.5 Performance Elite Coil-Over Conversion - Ford F450 Super Duty (20-22) 4WD
  • Zinc Coated: No
  • Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
  • Installation requires a torque wrench capable of 405 ft-lbs.
  • Wheel/Tire Specs:- Max Tire Size: 35x12.50- Front Wheel: 20x8.25 8.76" BS- Rear Outer: 20x8.25 -3.33" BS- Rear Inner: 20x8.25 9.11" BS
  • Designed for use on diesel models but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).

Notes:

Universal Fitment: These products should work with your vehicle as they are universal for fitment. We do recommend the customer researches and does due diligence regarding application. This should help confirm that this will work for your vehicle.

Notes:

  • FOX Performance Elite Coil-Over
  • HD Radius Arms
  • HD Adjustable Track Bar
