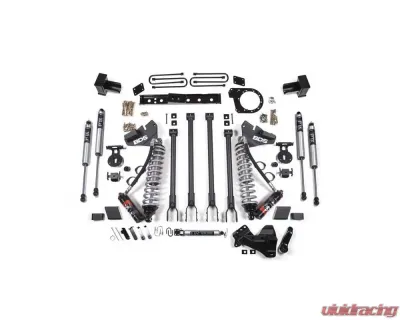

BDS Suspension 2020-2022 Ford F350 Dually 4wd 6" 4-Link Suspension Lift Kit Ford - BDS1574FPE
Raise the bar and take your dual rear wheel "DRW" Ford F350 Super Duty diesel truck to the next level with this 6-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS. Designed to improve stance performance and capability this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 38" tires. Up front the lift kit includes FOX 2.5 coil-over shocks heavy-duty replacement radius arms forged drop pitman arm and track bar bracket for steering correction sway bar relocation brake line brackets and secondary FOX 2.0 shocks. At this height the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block longer u-bolts brake line brackets and a matching set of FOX 2.0 Performance shocks. FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency. In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation. At this height driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally a high clearance transmission crossmember supplied to allow sufficient clearance.

Features:
  • Adjustable Damping: No
  • Adjustable: No
  • Dust Boot Included: No
  • Front Lift Height: 6
  • Front Lift Method: Coil Over
  • Gas Charged: No
  • Greaseable: No
  • Installation Difficulty: difficult
  • Installation Time: 8 Hrs
  • Mounting Hardware Included: No
  • Nuts Included: No
  • Pvg Addon Data: BDS123203-BDS123402-BDS123808-BDS123809
  • Pvg Product Status: Active
  • Rear Lift Height: 4
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Sleeves Included: No
  • 6 Inch Lift Kit w/ 4-Link - FOX 2.5 Performance Elite Coil-Over Conversion - Ford F350 Super Duty DRW (20-22) 4WD - Diesel
  • Zinc Coated: No
  • Due to the taller factory ride height Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
  • Dually Diesel Models Only
  • The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  • If equipped with a 2-piece rear driveshaft a Carrier Bearing Drop Kit may be required (BDS123402).
  • 38 x 13.50 tires may require minor trimming.
  • The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
Notes:
  • FOX Performance Elite Coil-Over
  • HD Radius Arms
  • T-Case Indexing
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2020, 2022
 Ford F-250 Super Duty
2020-2022
 Ford F-350 Super Duty
