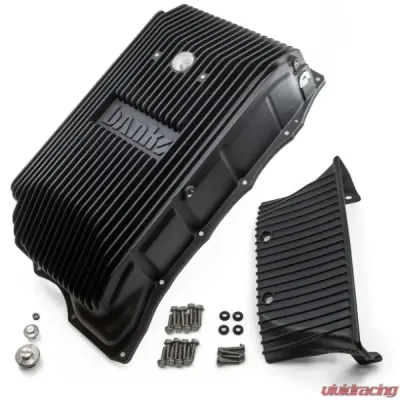

Banks brings Ram-Air cooling to the heavy-duty Allison 10L1000 transmission for 2020-2025. Using technology from our patented differential covers, the Banks Ram-Air Transmission Pan extends fluid oil life by rejecting more heat than stock and all competitors. An additional three quarts of capacity, a break-away Ram-Air scoop, and Banks FlowThru Fins aid in cooling. Cooler fluid means a longer-lasting transmission.

Why It's Better

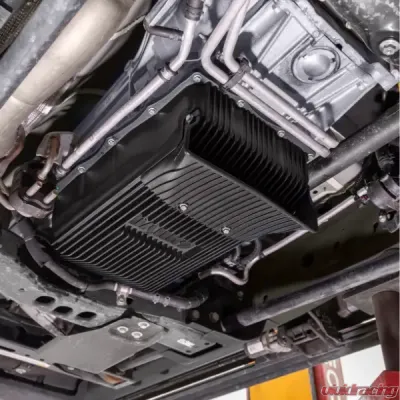

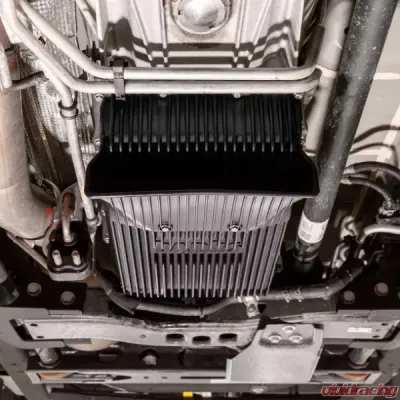

Engineered To Run Cool: The Banks Ram Air Transmission Pan for 2020-2025 Duramax trucks with the 10-speed 10L10000 transmission outperforms and outcools the competition by leveraging decades of Ram-Air technology and thermal management expertise honed in racing and military engine development. Taking advantage of the fast-moving cool air under your truck, the Ram-Air Transmission Pans' Patent Pending design draws ambient air through the large forward-facing scoop, funneling it through the external heat radiation fins. Even with the larger 10 speed Allison transmission tucked between the frame, the Ram-Air Transmission Pan is engineered so that the lowest point is only the sacrificial front scoop while still providing 3 additional quarts of fluid capacity. The plastic scoop is also designed to break away without causing damage to your pan, just in case. If this happens to you, let us know and we will send a replacement Ram-Air scoop on the house. The Banks proprietary FlowThru Fins maximize thermal energy transfer by lining up the internal absorption and external radiator elements with each other. Transmission fluid heat is efficiently drawn from the fluid, reducing stress on your Duramax's cooling and lubrication systems.

1/8" NPT port for easily adding a supplemental temperature sensor to your vehicle.

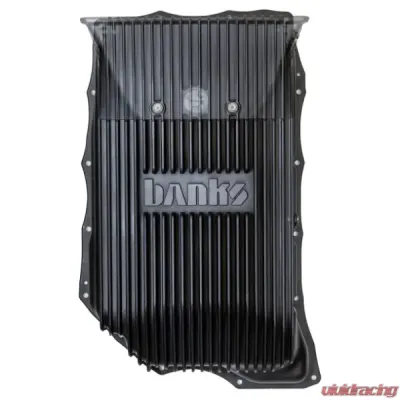

22 deep-cut external radiator fins provide more exposed surface area to the cool air moving under the truck.

Integrated support structure for internal filter acts as anti-slosh baffles for fluid in the pan.

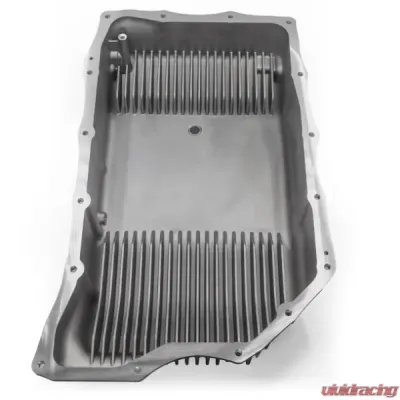

20 internal fins absorb more heat from the oil than a standard pan or all other aftermarket pans.

Die-cast process provides a smoother, less porous interior surface and improves fluid flow in the pan.

Banks Ram-Air transmission pans for the 10 speed Allison include an OE style fluid level check plug to verify the fluid level when servicing or toping off.

Angled at 90 degrees to limit spillage when filling, and sealed with a face sealing stainless steel Banks plug.

Banks vs The Competition

What happens when the Ram-Air goes against the competition? While others claim to have massive cooling ability with their designs featuring fins that cross haphazardly across their surface with no consideration for fluid dynamics, the Banks Ram-Air still comes out on top in total internal and external fin area. What all others lack though, is the forward facing Ram-Air scoop to help guide the air under your truck directly through its die-cast FlowThru Fins which further enhances heat transfer out of your fluid and away from your transmission. No other pan is as well engineered.

Die-Cast vs Sandcast

All Banks lubrication cooling products are die-cast, not sand-cast like competitors. Made with far greater precision, a die-cast part is denser, smoother, and has virtually no porosity compared to the equivalent sand-cast part. Sand-cast parts often retain the sand they were molded with. Sand is an abrasive material that is bad for bearings and cylinder walls. In other words, you don't want sand in your oil. Finally, our long, thin cooling fins are only possible with a die-cast process. Although this process costs more, it's worth it

Fluid Dynamics

• Internal cooling fins run inline with the drain port with streamlined passageways
• Downward facing port eases oil change process
• Low fluid aeration means longer fluid life

Technical Specs

• 1/8 NPT port for aux temp sensor
• External heat radiation fin count: 22
• Internal heat absorption fin count: 20
• External heat radiation surface area: 1005 in2
• Internal heat absorption surface area: 835 in2
• Fasteners: 16 x stainless steel M6 flange hex bolts
• Material: A380 aluminum diecast with CNC machined surfaces

Oil service

• High temp resistant Ferrite Magnetic Drain Plug
• Fully drains oil pickup tube for quicker oil changes
• Banks recommends Amsoil ATF
• Adds 3.0 quarts additional capacity(Check OEM Owners Manual)

Features:

• Engineered for the highest heat rejection, improved oil flow and full oil drainage
• Adds 3 additional quarts of fluid capacity
• Internal fins transfer heat through the cover into the external fins
• 123% more heat absorption surface area than stock
• 134% more cooling surface area than stock
• Breakaway Ram-Air Scoop Design Prevents Pan Damage
• Internal geometry allows full fluid drainage
• Patent Pending

Fitment:

• Chevrolet/GMC 2500/3500 6.6L Diesel with 10 speed Allison 10L1000 Transmission 2020-2025

Note:

• Will NOT work with AEV skid plates.
