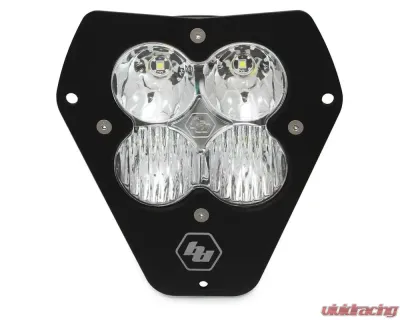

Baja Designs XL Sport LED Kit KTM 250 | 350 | 450 | 500 | 505 2008-2013
$297.95
Free Shipping

Baja Designs XL Sport LED Kit for KTM 250 | 350 | 450 | 500 | 505 (2008-2013)

If you're in the market for an off-road light that combines unique styling with top-notch performance, the Baja Designs XL Sport LED Kit is just what you need. Designed specifically for KTM models from 2008 to 2013, this kit delivers an impressive 3,150 lumens while drawing only 26 watts. This means you can ride longer without worrying about draining your battery!

Features That Stand Out

  • 30-Day Satisfaction Guarantee: Enjoy peace of mind with a money-back guarantee.
  • Limited Lifetime Warranty: Your purchase is protected for life.
  • uService: Easily replaceable lenses and optics for convenience.
  • ClearView: Experience all the light exactly where you need it.
  • MoistureBlock: Fully waterproof and submersible, ready for any weather.
  • CopperDrive: LEDs driven at 100% for maximum output.
  • 5000K Daylight: Natural color temperature reduces driver fatigue.

Specifications

  • Lumens: 3,150 (utilizing 4 LEDs)
  • Wattage/Amps: 26W / 2A
  • Dimensions: 4.43" x 3.65" x 4.43"
  • Weight: 1.85 lbs
  • LED Life Expectancy: 49,930 hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Meets MIL-STD810G: Undergoes rigorous military testing
  • Built-In Overvoltage Protection: Safeguards your system
  • IP69K Rating: Waterproof and submersible up to 9 feet
  • IK10 Compliant: Designed to withstand mechanical impacts

What’s Included

  • XL Sport LED Kit for KTM 2008-2013

Important Notes

  • For EXC models made from 2007-2011 that are carbureted, a plug-and-play setup is available with the purchase of the 61-1040 DC conversion kit.
  • Electric-start bikes may require a stator modification or rewind, along with a switch and wiring harness kit.
  • Some electric-start bikes will need a new rectifier/regulator to operate LED lights; please order part (12-2004) and provide your bike's year/make/model.
  • Detailed instructions for stator modifications are included. For rewinding, contact Baja Designs for an order confirmation number.
  • A Skene dimmer must be purchased separately to enable the high/low feature.

Light Patterns

  • Driving/Combo: This pattern offers maximum trail coverage, combining Wide Driving (44 degrees) and spot (6 degrees) optics for a smooth blend of near-field and distance lighting (Lighting Zone 3).

Fitment

  • KTM 250 SX-F (2011-2013)
  • KTM 250 XC-F (2011-2013)
  • KTM 350 SX-F (2011-2013)
  • KTM 350 XC-F (2011-2013)
  • KTM 450 XC-W (2012)
  • KTM 500 EXC (2012-2013)
  • KTM 500 EXC Six Days (2012-2013)
  • KTM 500 XC-W (2012)
  • KTM 505 XC-F (2008-2009)

Frequently Asked Questions

1. How bright is the Baja Designs XL Sport LED Kit?

The kit produces an impressive 3,150 lumens, providing excellent visibility for your off-road adventures.

2. Is this kit waterproof?

Yes, the Baja Designs XL Sport LED Kit is rated IP69K, meaning it is waterproof and can be submerged up to 9 feet.

3. Will this kit fit my KTM model?

This kit is designed for various KTM models from 2008 to 2013. Check the fitment section above for specific model compatibility.

4. What if I have an electric-start bike?

Electric-start bikes may require additional modifications, such as a stator rewind or a new rectifier/regulator. Refer to the important notes for more details.

5. Can I replace the lenses if they get damaged?

Absolutely! The uService feature allows you to easily replace lenses and optics as needed.

Customer Reviews

Customers rave about the Baja Designs XL Sport LED Kit, highlighting its exceptional brightness and durability. Many users appreciate the easy installation process and the peace of mind that comes with the lifetime warranty. Here’s what some satisfied customers have said:

  • "This light is a game changer for my night rides! Super bright and easy to install!"
  • "I love how well it illuminates the trail. The quality is top-notch!"
  • "The warranty gives me confidence in my purchase. Highly recommend!"
Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
2011-2013
KTM 250 SX-F
2011-2013
KTM 250 XC-F
2011-2013
KTM 350 SX-F
2011-2013
KTM 350 XC-F
2012
KTM 450 XC-W
2012-2013
KTM 500 EXC
2012
KTM 500 XC-W
2008-2009
KTM 505 XC-F

BedSlide Banner

Baja Designs

Baja Designs has been a leader in the off-road lighting industry for over 25 years. Today’s aftermarket is dominated by forward project LED light bars, which was initially developed by Baja Designs and used in the 2005 Baja 1000. They specialize in LED light bars, LED auxiliary lights, laser light bars, ATV and UTV lighting, and more. They refer to their team of engineering as “The Scientists of Lighting” thanks to their ability to push the industry forward and create new products. One of their latest innovations includes laser lights, offering unparalleled lighting distance compared to any other LED light bar on the market. Their products are 100% designed to be brighter, bolder, and better than any other lighting solution available.

Why Choose Baja Designs?

There are tons of different lighting companies on the market, why should you choose Baja Designs? There are a few reasons why you should choose a Baja Designs light bar, but they all relate to build quality, performance, and design.

Build Quality

What good is an off-road light if it can’t withstand the abuse of off-roading? Baja Designs lights are the toughest on the market, with an IP69k water/dust proof rating and MIL-STD-810G compliance. Baja Designs developed technology like their MoistureBlock power cord, which further improves water proofing even if you cut the plug off the end of the cord! Even if you can somehow break your Baja Designs light, they’ll back it up with their lifetime warranty.

Performance

Performance is one of the key factors when deciding what LED light bar you want to buy. Thanks to the insane amount of research and development on Baja Designs’ part, they’re able to offer the brightest lights on the market. They specifically use 5000k LEDs and invited technology such as CopperDrive which allows them to drive their LEDs at 100% without overheating. Further improving their performance is Baja Designs’ proprietary ClearView optics.

Design

Once you add in lights, a sound system, and other accessories on your vehicle, your charging system may have a hard time keeping up with the demand. For this reason, Baja Designs created their new Battery Management Tech which allows the light bar to throttle its output if it detects a drop in below 13.5V in your vehicle's charging system. Baja Designs specifically uses replaceable lenses and optics to make it easy to fix your LED light bar if the need arises.

The Purpose of Amber Lighting

Baja Designs amber led light bars

When you’re out ripping around the desert, it can quickly become difficult to see if you’re following someone else or the conditions are dusty. The problem with standard LED light bars, is the light will just reflect off the dust particles and end up making it harder to see. This effect can be especially frustrating if you’re racing, as you’ll be driving blind. The purpose of an LED light bar is to cut through the dust and illuminate the trail. Amber light cuts through dust, snow, and fog better than white light because of orange light reflects off those objects compared to white light. The easier it is to see in low visibility conditions, the faster and safer you can drive!

Understanding Lighting Patterns

As you may have figured out by now, there are tons of different lighting patterns associated with LED light bars. The two most common beam patterns include flood and spot. Each beam pattern has a specific use, and neither one is better for general use. To put it simply, flood lights use a very side and broad beam pattern. This allows more of the trail or road to be lit up in front of you, but the light won’t travel far. Spot beam light bars are much tighter and won’t illuminate the entire trail, but the light is projected much further, allowing you to see much farther down the trail. For general trail riding, either one will work fine. If you plan on pre-running or racing, then a spot beam light bar will be a much better option. If you end up driving faster than you can see, it won’t be long until a bad situation arises. For those who need to see as far as possible, Baja Designs developed their Laser lights which offer unmatched lighting distance.

LIMITED LIFETIME WARRANTY
Lifetime: COMPLETE PURCHASE PROTECTION
  • Warranties on our products vary by product and/or by industry, as listed below. All warranty returns require a Return Authorization form as described above.
  • Warranties cover defects in design and manufacturing only. Warranties do not cover, among other things: installation errors, wear and tear, acts of God, misuse, abuse, neglect, accidents, collisions, defects due to custom specifications provided by you, or any product modifications, configurations or combinations not performed by us or on our behalf. Also note the exceptions below for third-party products.
  • Warranty periods start on the shipment date.
  • For all warranty returns, we will pay the freight costs on the condition that you return the defective product within 90 days of delivery; otherwise, the product must be returned to us with freight prepaid by you. At our option and as the exclusive remedy, we will repair or replace the product in question, or issue credit. If an identical product is no longer available, we may replace with a similar product of comparable value.
Light Bars and Auxiliary Lights Used for Commercial Use: This covers the following industries: Agriculture, Industrial, Mining, and Public Safety.
  • Warranty Period: 5 years or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.
Light Bars and Auxiliary Lights Used for Recreational Automotive/Off Road: This covers lights bars and auxiliary lights.
  • Warranty Period: Limited lifetime warranty or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.
Third-Party Products: This covers brackets, wiring harnesses, dual sport kits, enduro kits, motorcycle accessories such as taillights, turn signals, brake switches, handlebar switches batteries, etc.
  • Pass-Through Warranty: We resell, and are not the manufacturer of, certain third-party products including those listed above. We make no express or implied warranties on third-party products and the warranty coverages above do not apply to these products. We will, however, pass through all warranties offered by the manufacturer, who has sole responsibility for processing warranty claims and returns. In all cases, unless otherwise agreed by the manufacturer, you must be the original owner with proof of purchase upon claim or proof of product registration.
  • Exceptions: NiCad DSK batteries carry a 90-day warranty, and dual sport kit switches carry a 1-year warranty.
