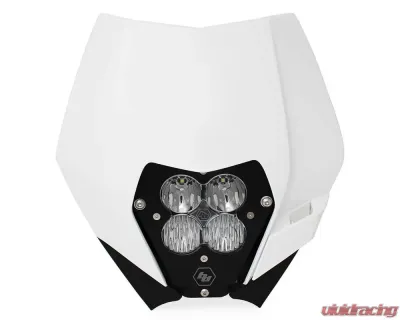

Baja Designs XL Sport D/C Headlight Kit
Illuminate Your Ride
If you're ready to take your off-road adventures to the next level, the Baja Designs XL Sport D/C Headlight Kit with Headlight Shell is just what you need. Designed specifically for KTM models from 2008 to 2013, this headlight kit combines unique styling with cutting-edge performance. With an impressive output of 3,150 lumens while only drawing 26 watts, you can enjoy longer rides without worrying about power consumption.
Why Choose the XL Sport Headlight Kit?
This headlight kit isn't just about looks; it's packed with features that enhance your riding experience:
- 30-Day Satisfaction Guarantee: Try it risk-free with our money-back guarantee.
- Limited Lifetime Warranty: Enjoy peace of mind with complete purchase protection.
- uService: Easily replace lenses and optics as needed.
- ClearView: Get all the light exactly where you need it.
- MoistureBlock: Fully waterproof and submersible, ready for any weather.
- CopperDrive: Runs LEDs at 100% for maximum brightness.
- 5000K Daylight: Provides natural color for reduced driver fatigue.
Specifications
- Lumens: 3,150 utilizing 4 Cree XP-G2 LEDs
- Wattage/Amps: 26W / 2A
- Dimensions: 4.43" x 3.65" x 4.43"
- Weight: 1.85 lbs
- LED Life Expectancy: 49,930 hours
- Front Lens: Hard-coated polycarbonate
- Housing: Hard anodized aluminum
- Bezel: Billet machined aluminum
- Hardware and Bracket Material: Stainless steel
- Exceeds MIL-STD810G: Mil-Spec testing
- Built-In Overvoltage Protection
- IP69K: Waterproof, submersible to 9ft
- IK10 Compliant: Mechanical impact testing
Included in the Kit
- XL Sport, LED KTM 2008-2013 with Headlight Shell
Important Notes
- For EXC models made from 2007-2011 that are carbureted, a plug-and-play option is available with purchase of #61-1040 (DC conversion kit).
- Electric start bikes may need a stator modification or rewind, requiring a switch and wiring harness kit.
- Some electric-start bikes will also need a new rectifier/regulator to run LED lights; please order part (#12-2004) with your bike's year/make/model.
- Detailed instructions and hardware for stator modifications are included. For rewinding services, contact Baja Designs for confirmation.
- A Skene dimmer must be purchased separately to enable the high/low feature.
Light Patterns
- Driving/Combo: This pattern offers maximum trail coverage, featuring both Wide Driving (44 degrees) and Spot (6 degrees) optics for a smooth blend of light for both near and distant visibility.
Fitment
- KTM 250 SX-F 2011-2013
- KTM 250 XC-F 2011-2013
- KTM 350 SX-F 2011-2013
- KTM 350 XC-F 2011-2013
- KTM 450 XC-W 2012
- KTM 500 EXC 2012-2013
- KTM 500 EXC Six Days 2012-2013
- KTM 500 XC-W 2012
- KTM 505 XC-F 2008-2009
Frequently Asked Questions (FAQs)
Can I install this headlight kit myself?
Yes! The installation process is straightforward, and detailed instructions are included in the kit.
What if I am not satisfied with the product?
You can take advantage of our 30-day money-back guarantee if you're not completely satisfied.
Is this headlight kit waterproof?
Absolutely! The Baja Designs XL Sport headlight kit is rated IP69K, making it waterproof and submersible to 9 feet.
How long will the LEDs last?
The LEDs have a life expectancy of around 49,930 hours, so you can count on them for many rides to come!
Customer Reviews
Users rave about the Baja Designs XL Sport Headlight Kit, highlighting its exceptional brightness, durability, and ease of installation. Many have noted how it significantly enhances visibility on rugged trails, making night rides safer and more enjoyable.
Watch It in Action
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
2011-2013 KTM 250 SX-F |
250 SX-F | 2011-2013 |
2011-2013 KTM 250 XC-F |
250 XC-F | 2011-2013 |
2011-2013 KTM 350 SX-F |
350 SX-F | 2011-2013 |
2011-2013 KTM 350 XC-F |
350 XC-F | 2011-2013 |
2012 KTM 450 XC-W |
450 XC-W | 2012 |
2012-2013 KTM 500 EXC |
500 EXC | 2012-2013 |
2012 KTM 500 XC-W |
500 XC-W | 2012 |
2008-2009 KTM 505 XC-F |
505 XC-F | 2008-2009 |
Baja Designs has been a leader in the off-road lighting industry for over 25 years. Today’s aftermarket is dominated by forward project LED light bars, which was initially developed by Baja Designs and used in the 2005 Baja 1000. They specialize in LED light bars, LED auxiliary lights, laser light bars, ATV and UTV lighting, and more. They refer to their team of engineering as “The Scientists of Lighting” thanks to their ability to push the industry forward and create new products. One of their latest innovations includes laser lights, offering unparalleled lighting distance compared to any other LED light bar on the market. Their products are 100% designed to be brighter, bolder, and better than any other lighting solution available.
Why Choose Baja Designs?There are tons of different lighting companies on the market, why should you choose Baja Designs? There are a few reasons why you should choose a Baja Designs light bar, but they all relate to build quality, performance, and design.
Build QualityWhat good is an off-road light if it can’t withstand the abuse of off-roading? Baja Designs lights are the toughest on the market, with an IP69k water/dust proof rating and MIL-STD-810G compliance. Baja Designs developed technology like their MoistureBlock power cord, which further improves water proofing even if you cut the plug off the end of the cord! Even if you can somehow break your Baja Designs light, they’ll back it up with their lifetime warranty.
PerformancePerformance is one of the key factors when deciding what LED light bar you want to buy. Thanks to the insane amount of research and development on Baja Designs’ part, they’re able to offer the brightest lights on the market. They specifically use 5000k LEDs and invited technology such as CopperDrive which allows them to drive their LEDs at 100% without overheating. Further improving their performance is Baja Designs’ proprietary ClearView optics.
DesignOnce you add in lights, a sound system, and other accessories on your vehicle, your charging system may have a hard time keeping up with the demand. For this reason, Baja Designs created their new Battery Management Tech which allows the light bar to throttle its output if it detects a drop in below 13.5V in your vehicle's charging system. Baja Designs specifically uses replaceable lenses and optics to make it easy to fix your LED light bar if the need arises.
The Purpose of Amber LightingWhen you’re out ripping around the desert, it can quickly become difficult to see if you’re following someone else or the conditions are dusty. The problem with standard LED light bars, is the light will just reflect off the dust particles and end up making it harder to see. This effect can be especially frustrating if you’re racing, as you’ll be driving blind. The purpose of an LED light bar is to cut through the dust and illuminate the trail. Amber light cuts through dust, snow, and fog better than white light because of orange light reflects off those objects compared to white light. The easier it is to see in low visibility conditions, the faster and safer you can drive!
Understanding Lighting PatternsAs you may have figured out by now, there are tons of different lighting patterns associated with LED light bars. The two most common beam patterns include flood and spot. Each beam pattern has a specific use, and neither one is better for general use. To put it simply, flood lights use a very side and broad beam pattern. This allows more of the trail or road to be lit up in front of you, but the light won’t travel far. Spot beam light bars are much tighter and won’t illuminate the entire trail, but the light is projected much further, allowing you to see much farther down the trail. For general trail riding, either one will work fine. If you plan on pre-running or racing, then a spot beam light bar will be a much better option. If you end up driving faster than you can see, it won’t be long until a bad situation arises. For those who need to see as far as possible, Baja Designs developed their Laser lights which offer unmatched lighting distance.
Lifetime: COMPLETE PURCHASE PROTECTION
- Warranties on our products vary by product and/or by industry, as listed below. All warranty returns require a Return Authorization form as described above.
- Warranties cover defects in design and manufacturing only. Warranties do not cover, among other things: installation errors, wear and tear, acts of God, misuse, abuse, neglect, accidents, collisions, defects due to custom specifications provided by you, or any product modifications, configurations or combinations not performed by us or on our behalf. Also note the exceptions below for third-party products.
- Warranty periods start on the shipment date.
- For all warranty returns, we will pay the freight costs on the condition that you return the defective product within 90 days of delivery; otherwise, the product must be returned to us with freight prepaid by you. At our option and as the exclusive remedy, we will repair or replace the product in question, or issue credit. If an identical product is no longer available, we may replace with a similar product of comparable value.
- Warranty Period: 5 years or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.
- Warranty Period: Limited lifetime warranty or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.
- Pass-Through Warranty: We resell, and are not the manufacturer of, certain third-party products including those listed above. We make no express or implied warranties on third-party products and the warranty coverages above do not apply to these products. We will, however, pass through all warranties offered by the manufacturer, who has sole responsibility for processing warranty claims and returns. In all cases, unless otherwise agreed by the manufacturer, you must be the original owner with proof of purchase upon claim or proof of product registration.
- Exceptions: NiCad DSK batteries carry a 90-day warranty, and dual sport kit switches carry a 1-year warranty.
