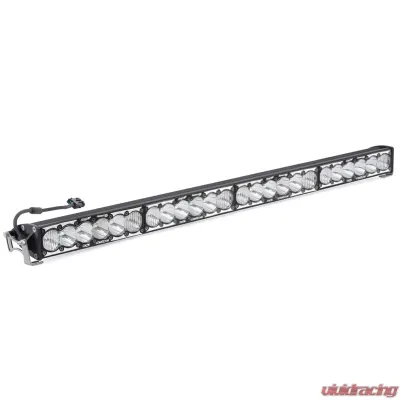

Baja Designs OnX6 40 Inch Hybrid LED And Laser Light Bar
If you're looking for a lighting solution that truly stands out, the Baja Designs OnX6 40 Inch Hybrid LED and Laser Light Bar is the answer. This innovative product combines the power of both LED and laser technology to give you the ultimate visibility on the road or trail. With its impressive design and advanced features, you can be confident that this light bar will meet your needs.
Unmatched Performance
The OnX6 Hybrid is engineered for distance lighting, capable of projecting light up to 60% farther than traditional LED light bars. With 8 laser chips and 16 LED chips, this light bar utilizes a High Speed Spot optic to deliver a smooth and far-reaching beam. Whether you're navigating through dark trails or tackling tough terrains, this light bar ensures you have the visibility you need to stay safe and confident.
Key Features
- Satisfaction Guarantee: Enjoy a 30-day money-back guarantee.
- Limited Lifetime Warranty: Complete purchase protection for peace of mind.
- uService: Replaceable lenses and optics for long-term use.
- ClearView: Get all the light directed right where you need it.
- MoistureBlock: Waterproof, rainproof, and submersible.
- CopperDrive: LEDs driven at 100% for maximum brightness.
Specifications
- Lumens: 31,040 from 16 LEDs and 8 laser chips.
- Wattage/Amps: 380W.
- Dimensions: 40 inches x 4.29 inches x 2.69 inches.
- Weight: 15.05 lbs.
- LED Life Expectancy: 49,930 hours.
- Front Lens: Hard-coated polycarbonate for durability.
- Housing: Aircraft-grade aluminum with Mil-Spec hard anodize.
- Bezel: Billet machined aluminum.
- Hardware and Bracket Material: Stainless steel.
- Exceeds MIL-STD810G: Tested for military specifications.
- Built-In Overvoltage Protection: Safeguards against electrical issues.
- IP69K: Waterproof up to 9 feet and pressure washable.
- IK10 Compliant: Mechanical impact tested for durability.
- Sold As A Kit: Everything you need included.
Fitment Information
This 40-inch light bar is designed to be compatible with a variety of vehicles. Before making your purchase, ensure that your vehicle has the necessary electrical output to support this high-output light bar. It's important to note that the 40-inch and 50-inch Hybrid Laser light bars require dual power cords and controls, so you will need two harnesses for installation.
Frequently Asked Questions (FAQs)
1. What vehicles are compatible with the Baja Designs OnX6 40 Inch Hybrid Light Bar?
This light bar fits a wide range of vehicles, but it's essential to check your vehicle's electrical system to ensure compatibility.
2. How do I install the light bar?
Installation requires two power harnesses for the 40-inch model. It's recommended to consult a professional if you're unsure about the installation process.
3. How bright is the OnX6 Hybrid Light Bar?
With a lumen output of 31,040, this light bar provides exceptional brightness, making it one of the most powerful options available.
4. Is the light bar waterproof?
Yes, the OnX6 Hybrid Light Bar is rated IP69K, meaning it's waterproof up to 9 feet and can withstand pressure washing.
5. What kind of warranty does it come with?
This product includes a limited lifetime warranty, ensuring your investment is protected.
Customer Reviews
Customers rave about the Baja Designs OnX6 40 Inch Hybrid Light Bar, highlighting its impressive brightness and durability. Many users have noted how it significantly improves visibility during nighttime driving and off-roading adventures. The robust construction and ease of installation have also received positive feedback, making it a top choice for outdoor enthusiasts.
Shipment Notes:
- All Baja Design products require a minimmum 1 week assembly time before shipment.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Baja Designs has been a leader in the off-road lighting industry for over 25 years. Today’s aftermarket is dominated by forward project LED light bars, which was initially developed by Baja Designs and used in the 2005 Baja 1000. They specialize in LED light bars, LED auxiliary lights, laser light bars, ATV and UTV lighting, and more. They refer to their team of engineering as “The Scientists of Lighting” thanks to their ability to push the industry forward and create new products. One of their latest innovations includes laser lights, offering unparalleled lighting distance compared to any other LED light bar on the market. Their products are 100% designed to be brighter, bolder, and better than any other lighting solution available.
Why Choose Baja Designs?There are tons of different lighting companies on the market, why should you choose Baja Designs? There are a few reasons why you should choose a Baja Designs light bar, but they all relate to build quality, performance, and design.
Build QualityWhat good is an off-road light if it can’t withstand the abuse of off-roading? Baja Designs lights are the toughest on the market, with an IP69k water/dust proof rating and MIL-STD-810G compliance. Baja Designs developed technology like their MoistureBlock power cord, which further improves water proofing even if you cut the plug off the end of the cord! Even if you can somehow break your Baja Designs light, they’ll back it up with their lifetime warranty.
PerformancePerformance is one of the key factors when deciding what LED light bar you want to buy. Thanks to the insane amount of research and development on Baja Designs’ part, they’re able to offer the brightest lights on the market. They specifically use 5000k LEDs and invited technology such as CopperDrive which allows them to drive their LEDs at 100% without overheating. Further improving their performance is Baja Designs’ proprietary ClearView optics.
DesignOnce you add in lights, a sound system, and other accessories on your vehicle, your charging system may have a hard time keeping up with the demand. For this reason, Baja Designs created their new Battery Management Tech which allows the light bar to throttle its output if it detects a drop in below 13.5V in your vehicle's charging system. Baja Designs specifically uses replaceable lenses and optics to make it easy to fix your LED light bar if the need arises.
The Purpose of Amber LightingWhen you’re out ripping around the desert, it can quickly become difficult to see if you’re following someone else or the conditions are dusty. The problem with standard LED light bars, is the light will just reflect off the dust particles and end up making it harder to see. This effect can be especially frustrating if you’re racing, as you’ll be driving blind. The purpose of an LED light bar is to cut through the dust and illuminate the trail. Amber light cuts through dust, snow, and fog better than white light because of orange light reflects off those objects compared to white light. The easier it is to see in low visibility conditions, the faster and safer you can drive!
Understanding Lighting PatternsAs you may have figured out by now, there are tons of different lighting patterns associated with LED light bars. The two most common beam patterns include flood and spot. Each beam pattern has a specific use, and neither one is better for general use. To put it simply, flood lights use a very side and broad beam pattern. This allows more of the trail or road to be lit up in front of you, but the light won’t travel far. Spot beam light bars are much tighter and won’t illuminate the entire trail, but the light is projected much further, allowing you to see much farther down the trail. For general trail riding, either one will work fine. If you plan on pre-running or racing, then a spot beam light bar will be a much better option. If you end up driving faster than you can see, it won’t be long until a bad situation arises. For those who need to see as far as possible, Baja Designs developed their Laser lights which offer unmatched lighting distance.
