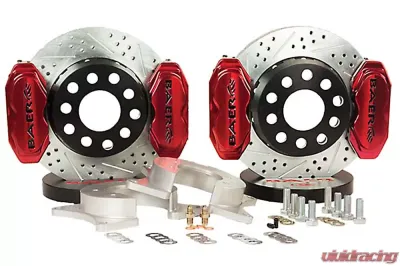

Baer Brakes Brake System 11 Inch Rear SS4+ Deep Stage 4-Caliper Fire Red Ford 8.8 Inch C Clip

This rear system is designed as a Drag Race only part, featuring 4 S4 4-piston calipers mounted to an 11 inch x 1 inch directional, 2-piece slot, drill, zinc plated rotor. There is NO Park Brake in this system! Specifically engineered for heavy, fast drag cars, this system is crucial for launching or staging the vehicle. The rear systems are tailored to the housing end being used; if you are uncertain about your ends, please contact us directly. Note: Your axle flange will need to be turned down to 5.75 inches for this system to function properly. Various piston sizes are available, with the larger 1.75 inches providing maximum clamping force but potentially causing long pedal issues due to large volume requirements. A smaller 1.375 inch piston option has been introduced and is popular in classes such as NMRA True Street, where limited street use is expected. These rear systems are strictly for racing. If used on the street, ensure proper adjustment due to brake bias changes. Note: This system includes a high friction pad optimized for drag race applications, which may produce more dust and noise.

• Designed to be used with Ford 8.8 Inch C-Clip Eliminator - will work on Hybrid Ends or C-Clip Eliminator Kits ONLY - uses the 1.375 Inch Caliper Pistons
• Rotors drilled for 5 x 4.50 Inch and 5 x 4.75 Inch wheel bolt patterns
• Axle flange needs to be 5.75 inches
• Rotor register needs to be 2.780 inches

Why Purchase the SS4+ Deep Stage Drag Race Systems?

• All the benefits of our larger brake systems just in a smaller package to fit 15 inch wheels
• Fits most all dual beadlock wheels
• Designed specifically for heavy, fast cars
• Can be used on the street
• 6061 T-6 billet aluminum hat anodized black and bolted to the rotor
• High grade U281 fine thread stainless hardware with captured nuts

The S4 Caliper Features:

• 4 10mm cross bolts for maximum stiffness
• Stainless steel abutments and noise suppression springs
• Hard anodized aluminum pistons
• Internal crossover design
• Dual seals - dust/weather/pressure - to meet D.O.T. specifications
• Machined logo that is hand painted
• Uses a common 4 piston pad for easy replacements P/N DR1
• Fire Red Powder Coat Finish - standard colors are clear and fire red - custom colors available
• Available in front or rear for that same cosmetic matching look
• Uses correct banjo style fittings - Baer does not use any pipe thread
• 100 percent MADE IN USA with US sourced material!

4262684FR and Baer Sport

The 4262684FR is a premium product that ensures optimal performance for your vehicle. Designed specifically for the Ford 8.8 Inch C-Clip, this brake system not only enhances your vehicle's stopping power but also maintains a sleek appearance with its Fire Red finish. The Baer Sport system is engineered to provide the ultimate in drag racing performance, making it a top choice for serious competitors.

4262684FR and Baer Brakes Brake System 11 Inch Rear SS4+ Deep Stage 4-Caliper Fire Red Ford 8.8 Inch C Clip

Investing in the 4262684FR means you are choosing a system that is built to last and perform under the most demanding conditions. The Baer Brakes Brake System 11 Inch Rear SS4+ Deep Stage 4-Caliper Fire Red Ford 8.8 Inch C Clip is designed for those who take their racing seriously, offering unmatched reliability and performance on the track. With its high-grade materials and advanced engineering, this system will not only meet but exceed your expectations.
