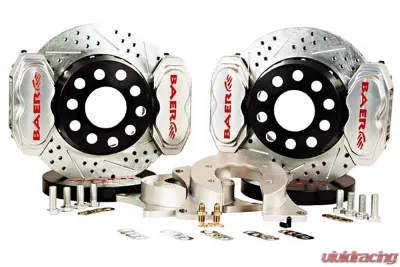

Baer Brakes Brake System 11 Inch Rear SS4+ 1.75 Inch Pistons Deep Stage 4-Caliper Clear Ford 9 Inch Small Bearing

4262320C and Baer Sport

This rear brake system, model 4262320C, is specifically engineered as a Drag Race only component, featuring 4 S4 4-piston calipers mounted to an 11 inch x 1 inch directional, 2-piece slot, drill, zinc plated rotor. This setup is tailored for heavy and fast drag cars that depend on their braking system to launch or stage the vehicle effectively. The rear systems are designed to fit specific housing ends; for assistance in identifying your setup, please contact us directly or consult the images provided below.

Note: Your axle flange must be turned down to 5.75 inches for this system to function correctly. The 4262320C is available in various piston sizes. The larger 1.75-inch piston area delivers maximum clamping force but may lead to longer pedal travel due to its volume requirements. Alternatively, the smaller 1.375-inch piston option has gained popularity in racing classes such as NMRA True Street, where limited street use is expected. These rear systems are strictly intended for racing applications. If used on the street, adjustments must be made to ensure proper brake bias.

Note: This system is equipped with high friction pads optimized for drag racing, which may produce increased dust and noise.

• Designed To Be Used With Ford 9 Inch With Small Bearing Housing Ends With 2.50 Inch Standoff
• Rotors Drilled For 5/8 Studs With 11/16 Holes For 5 x 4.50 Inch And 5 x 4.75 Inch Wheel Bolt Patterns
• Axle Flange Needs To Be 5.75 Inches
• Rotor Register Needs To Be 2.780 Inches

Why Purchase the SS4+ Deep Stage Drag Race Systems?

• All the benefits of our larger brake systems just in a smaller package to fit 15 inch wheels
• Fits most all dual beadlock wheels
• Designed specifically for heavy, fast cars
• Can be used on the street
• 6061 T-6 billet aluminum hat anodized black and bolted to the rotor
• High grade U281 fine thread stainless hardware with captured nuts

The S4 Caliper Features:

• 4 10mm cross bolts for maximum stiffness
• Stainless steel abutments and noise suppression springs
• Hard anodized aluminum pistons
• Internal crossover design
• Dual seals - dust/weather/pressure - to meet D.O.T. specifications
• Machined logo that is hand painted
• Uses a common 4 piston pad for easy replacements P/N DR1
• Clear Powder Coat Finish - Standard Colors are Clear and Fire Red - Custom colors available
• Available in Front or Rear for that same cosmetic matching look
• Uses correct banjo style fittings - Baer does not use any pipe thread
• 100 percent MADE IN USA with US sourced material!

4262320C and Baer Brakes Brake System 11 Inch Rear SS4+ 1.75 Inch Pistons Deep Stage 4-Caliper Clear Ford 9 Inch Small Bearing

Investing in the 4262320C from Baer Sport means equipping your vehicle with a premium brake system designed for high-performance racing. This system enhances your vehicle's braking capabilities, ensuring you can handle the demands of drag racing while maintaining safety and control. With its precise fitment for Ford 9 Inch Small Bearing configurations, this brake system is engineered to meet the rigorous standards of serious racers.
