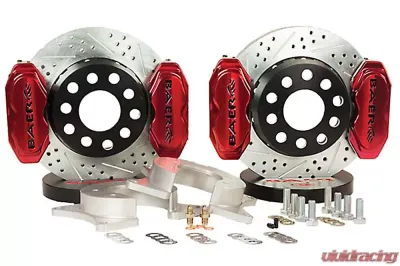

Baer Brakes Brake System 11 Inch Rear SS4+ 1.375 Inch Pistons Deep Stage 4-Caliper Fire Red Ford 9 Inch Small Bearing

This rear system is designed as a Drag Race only part, featuring 4 S4 4-piston calipers mounted to an 11 inch x 1 inch directional, 2-piece slot, drill, zinc plated rotor. There is NO Park Brake in this system! Specifically engineered for heavy, fast drag cars that depend on their brakes to launch or stage the vehicle, this setup is crucial for competitive racing. The rear systems are tailored to the housing end being used. If you're uncertain about the ends you are working with, please contact us directly. Note: Your axle flange will need to be turned down to 5.75 inches for this system to work. These systems come in various piston sizes. The larger piston area, 1.75 inches, delivers maximum clamping force but may lead to long pedal issues due to large volume requirements. A smaller 1.375 inch piston option was introduced and has gained popularity in classes like NMRA True Street, where limited street use is common. These rear systems are strictly for racing; if used on the street, ensure proper adjustment due to changes in brake bias. Note: This system comes equipped with high-friction pads optimized for drag race applications, which may produce more dust and noise.

• Designed To Be Used With 9 Inch Ford With Small Bearing Housing Ends With 2.5 Inch Standoff
• Rotors Drilled For 5 x 4.50 Inch And 5 x 4.75 Inch Wheel Bolt Patterns
• Axle Flange Needs To Be 5.75 Inches
• Rotor Register Needs To Be 2.780 Inches

Why Purchase the SS4+ Deep Stage Drag Race Systems?

• All the benefits of our larger brake systems just in a smaller package to fit 15 inch wheels
• Fits most dual beadlock wheels
• Designed specifically for heavy, fast cars
• Can be used on the street
• 6061 T-6 billet aluminum hat anodized black and bolted to the rotor
• High grade U281 fine thread stainless hardware with captured nuts

The S4 Caliper Features:

• 4 10mm cross bolts for maximum stiffness
• Stainless steel abutments and noise suppression springs
• Hard anodized aluminum pistons
• Internal crossover design
• Dual seals - dust/weather/pressure - to meet D.O.T. specifications
• Machined logo that is hand painted
• Uses a common 4 piston pad for easy replacements P/N DR1
• Fire Red Powder Coat Finish - Standard Colors are Clear and Fire Red - Custom colors available
• Available in Front or Rear for that same cosmetic matching look
• Uses correct banjo style fittings - Baer does not use any pipe thread
• 100 percent MADE IN USA with US sourced material!

Baer Sport and 4262683FR

The 4262683FR brake system is an exceptional choice for enthusiasts looking to enhance their vehicle's performance on the drag strip. Designed for compatibility with the 9-inch Ford rear end, this system ensures precise fitment and optimal braking force. The incorporation of Baer Sport technology guarantees that your vehicle will not only perform but also maintain reliability under extreme conditions.

4262683FR and Baer Brakes Brake System 11 Inch Rear SS4+ 1.375 Inch Pistons Deep Stage 4-Caliper Fire Red Ford 9 Inch Small Bearing

Investing in the 4262683FR brake system means equipping your car with a premium product that enhances your racing capabilities. With features like high-grade materials and advanced engineering, this Baer Brakes Brake System delivers unparalleled performance for serious racers. Whether you're hitting the drag strip or taking your car to the street, the 4262683FR system provides the confidence you need to push your vehicle to its limits.
