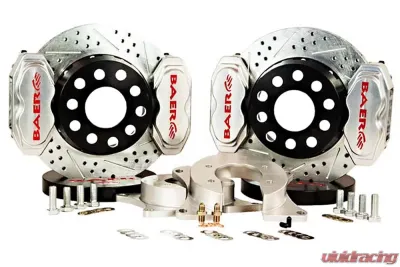

Baer Brakes Brake System 11 Inch Rear SS4+ 1.375 Inch Pistons Deep Stage 4-Caliper Clear Ford 9 Inch Small Bearing

This rear system is designed as a Drag Race only part, featuring 4 S4 4-piston calipers mounted to an 11 inch x 1 inch directional, 2-piece slot, drill, zinc plated rotor. There is NO Park Brake in this system! Specifically engineered for heavy, fast drag cars that rely on their brake to launch or stage the car, this system is a premium choice for serious racers. The rear systems are tailored to the housing end being used; if you're unsure of your setup, please contact us directly.

Note: Your axle flange will need to be turned down to 5.75 inches for this system to work. These systems are available in various piston sizes. The larger piston area, 1.75 inches, delivers maximum clamping force but may lead to long pedal issues due to larger volume requirements. A smaller 1.375 inch piston option was introduced and has become popular in classes like NMRA True Street, where limited street use is expected. These rear systems are designed exclusively for racing. If used on the street, be sure to adjust for brake bias to ensure safe operation.

Note: This system comes equipped with high friction pads optimized for drag race applications, which can produce more dust and noise.

• Designed To Be Used With 9 Inch Ford With Small Bearing Housing Ends With 2.5 Inch Standoff
• Rotors Drilled For 5 x 4.50 Inch And 5 x 4.75 Inch Wheel Bolt Patterns
• Axle Flange Needs To Be 5.75 Inches
• Rotor Register Needs To Be 2.780 Inches

Why Purchase the SS4+ Deep Stage Drag Race Systems?

• All the benefits of our larger brake systems just in a smaller package to fit 15 inch wheels
• Fits most dual beadlock wheels
• Designed specifically for heavy, fast cars
• Can be used on the street
• 6061 T-6 billet aluminum hat anodized black and bolted to the rotor
• High grade U281 fine thread stainless hardware with captured nuts

The S4 Caliper Features:

• 4 10mm cross bolts for maximum stiffness
• Stainless steel abutments and noise suppression springs
• Hard anodized aluminum pistons
• Internal crossover design
• Dual seals - dust/weather/pressure - to meet D.O.T. specifications
• Machined logo that is hand painted
• Uses a common 4 piston pad for easy replacements P/N DR1
• Clear Powder Coat Finish - Standard Colors are Clear and Fire Red - Custom colors available
• Available in Front or Rear for that same cosmetic matching look
• Uses correct banjo style fittings - Baer does not use any pipe thread
• 100 percent MADE IN USA with US sourced material!

4262683C and Baer Sport

4262683C and Baer Brakes Brake System 11 Inch Rear SS4+ 1.375 Inch Pistons Deep Stage 4-Caliper Clear Ford 9 Inch Small Bearing

With the 4262683C, this Baer Brakes Brake System is a top-tier choice for performance enthusiasts looking to enhance their vehicle's braking capabilities. Designed for specific fitment with the 9-inch Ford rear end, it ensures that your drag racing experience is both safe and effective. The high-performance components and innovative design make it an essential upgrade for serious racers demanding reliability and performance on the track.
