034 Motorsports SuperDuper Charger 84mm Throttle Body System for Audi Q7 4M 3.0 TFSI 2017-2019
$659.00
Free Shipping

034Motorsport SuperDuper Charger 84mm Throttle Body System

Enhance the performance of your 2017-2019 Audi Q7 4M equipped with the supercharged 3.0 TFSI engine using the 034Motorsport SuperDuper Charger 84mm Throttle Body System. This throttle body upgrade is designed for automotive enthusiasts seeking to maximize airflow and power output with a straightforward bolt-on solution.

Key Features

  • Constructed from cast and machined A356 aluminum for durability.
  • Upgraded to a VDO 84mm throttle body, providing a significant flow increase.

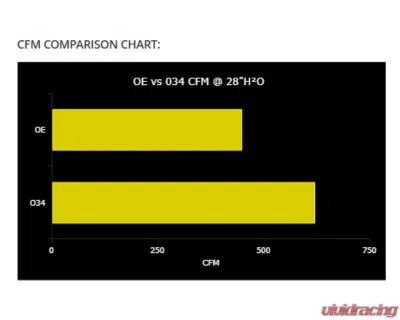

  • Delivers a 39% increase in flow compared to the stock throttle body, with OEM ratings of 448 CFM versus 620 CFM for the 034Motorsport throttle body.
  • Includes a smooth transition from the larger throttle body to the supercharger inlet, optimizing airflow.

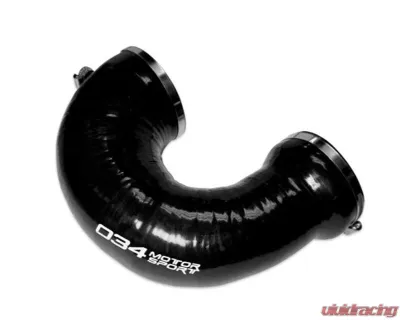

  • Features a wire-reinforced multi-ply silicone hose that maintains a smooth internal surface for optimal flow.
  • Throttle body adapter and gasket can be port-matched during supercharger porting for even greater airflow potential.

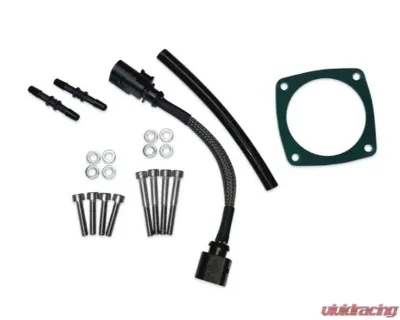

  • Comes with all necessary hardware, including a wiring harness adapter and an adapter to supercharger gasket.
  • Replaces OE part number: 06E 129 616 D.

Installation Notes

Installation is straightforward, connecting directly to the factory airbox. Note that the OEM air filter is sufficient for this system, as it supports over 2000 CFM, making aftermarket filters unnecessary for performance gains. Ensure that you are using the 034Motorsport Dynamic+ Tuning to safely operate the throttle body system. After installation, it is essential to flash the designated "SuperDuper Throttle Body File" in your tuning portal and perform a Throttle Body Alignment using the 034SPI tool.

Prerequisites for Throttle Body Alignment

  • No stored faults in the ECU.
  • Battery voltage must be at least 11.5 volts.
  • Throttle must be in a resting/idle position (do not press the accelerator pedal).
  • Throttle body must be clean and free of dirt and carbon deposits.
  • Coolant temperature should be between 5 and 95 degrees Celsius.

Emissions Disclaimer

This product is intended for racing use and for vehicles not registered for highway use. By purchasing this product, you acknowledge that it is not legal for use on street vehicles.

Fitment

  • Audi Q7 4M 3.0 TFSI (2017-2019)

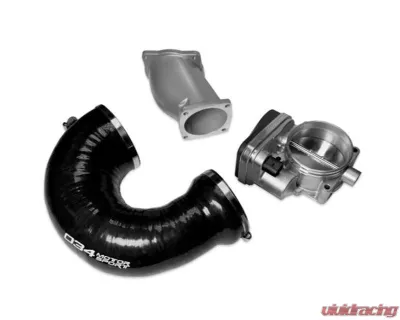

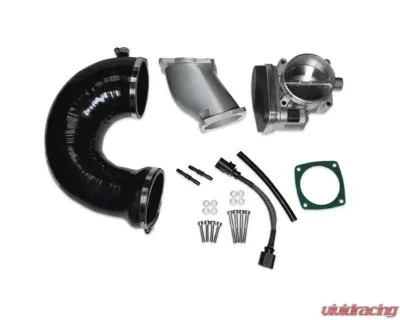

What's Included

  • 84mm VDO Throttle Body
  • Throttle Body Adapter
  • Silicone Hose
  • Wiring Harness Adapter
  • Adapter to Supercharger Gasket
  • All Necessary Hardware

Installation Instructions

  • For detailed installation instructions, CLICK HERE.
